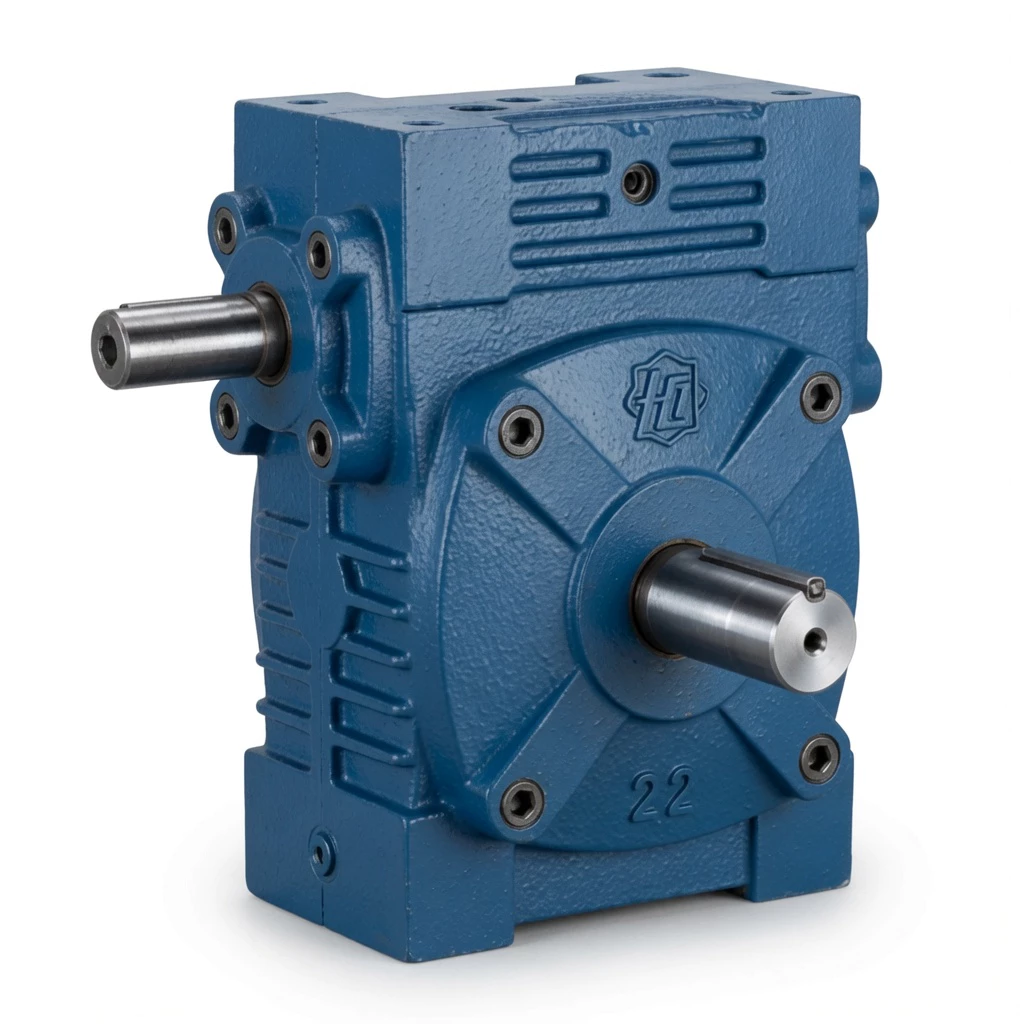

WPW Universal Speed Cast Iron Worm Gearbox — WPW Series

Most worm gearbox catalogues offer orientation-specific housings: one model for horizontal input, another for vertical, another for overhead motors. When your equipment design requires a single gearbox that can be installed in any orientation — or when your machine range must standardise on one drive product across diverse installation positions — standard orientation-specific housings force you to stock and manage multiple models. The WPW Universal Speed Cast Iron Worm Gearbox solves this with the WPW-series universal body: 5 shaft direction configurations (A/B/C/D/E) in a single housing platform, covering all standard installation orientations from 1/5 to 1/60 reduction ratio, sizes 40–250 mm, with output torques up to 4,796 Nm. One product. Every orientation.

✉ Request a Quote | About Ever-power

■ 5 Shaft Direction Configurations — A, B, C, D, E

The WPW-series universal body supports 5 standard shaft direction configurations, covering all practical installation orientations: A (standard horizontal), B (input from side), C (vertical upward output), D (input from above), E (reverse orientation). All configurations share the same housing casting.

■ Universal Oil System — Correct Lubrication in All Orientations

The WPW-series oil channels, fill ports, and vent positions are designed to maintain adequate worm mesh oil submersion across all 5 shaft direction configurations. Each configuration has orientation-specific fill quantities specified in the installation guide.

■ Full WP Ratio Range: 1/5–1/60 in All Orientations

All standard WP worm ratios (1/5, 1/7.5, 1/10, 1/15, 1/20, 1/25, 1/30, 1/40, 1/50, 1/60) are available across all 5 shaftdirection configurations — no ratio restrictions for any installation orientation.

■ FC20+ Cast Iron Universal Body — Full Mechanical Specification

The WPW universal body is manufactured from FC20+ grey cast iron to the same mechanical specification as the orientation-specific WP series housings. Universal versatility is achieved through geometry — not through any compromise of material quality.

■ Output Torques up to 4,796 Nm (Size 250 at 1/60)

The WPW provides the full WP series output torque range up to 4,796 Nm at size 250/ratio 1/60, covering all standard industrial drive applications from small process equipment to heavy industrial drives.

■ ISO 9001:2000 + CE Certified Across All Configurations

All 5 shaft direction configurations are covered by the WPW ISO 9001:2000 quality certification and CE declaration of conformity — providing complete procurement documentation for any installation orientation.

⚒ OEM Machine Builders — Multi-Orientation Product Range

OEM builders manufacturing the same machine for diverse customer installation environments use the WPW as their single drive platform — reducing the number of gearbox SKUs required across their product range from many to one.

⚔ Process Plant Standardisation

Large process plants managing hundreds of drive units across diverse orientations benefit from standardising on the WPW universal platform — simplifying spare parts inventory, training, and maintenance documentation.

☵ Conveyor Systems — Multiple Belt Orientations

Conveyor system integrators whose projects include horizontal, inclined, and vertical conveyor sections use the WPW to drive all sections with a single gearbox product, simplifying procurement and field spares.

⚊ Food & Beverage Multi-Line Installations

Food and beverage facilities with multiple processing lines in different orientations use the WPW to standardise their drive maintenance across all production lines.

⚛ General Manufacturing — Mixed Drive Environments

General manufacturing environments where machines of different types and orientations share a common spares holding benefit from the WPW’s universal mounting versatility.

✎ ISO 9001:2000 Certified

Every WPW is manufactured, assembled, and tested under ISO 9001:2000 quality management. Our factory was among the first in this product category to achieve this certification.

✎ CE Marking

Full CE marking confirms compliance with EU Machinery Directive 2006/42/EC — covering safety, design standards, and manufacturing quality for all WPW-series universal configurations.

✎ Pre-Shipment Testing

Noise test (below 72 dB(A) at rated load), oil leak test (30-minute pressurisation), torque transmission test (output torque within ±5% of rated). Failed units are reworked — not shipped.

✎ Universal Configuration Quality

Each shaft direction configuration (A–E) is verified dimensionally for correct bore position, keyway orientation, and oil channel routing before leaving our production line.
