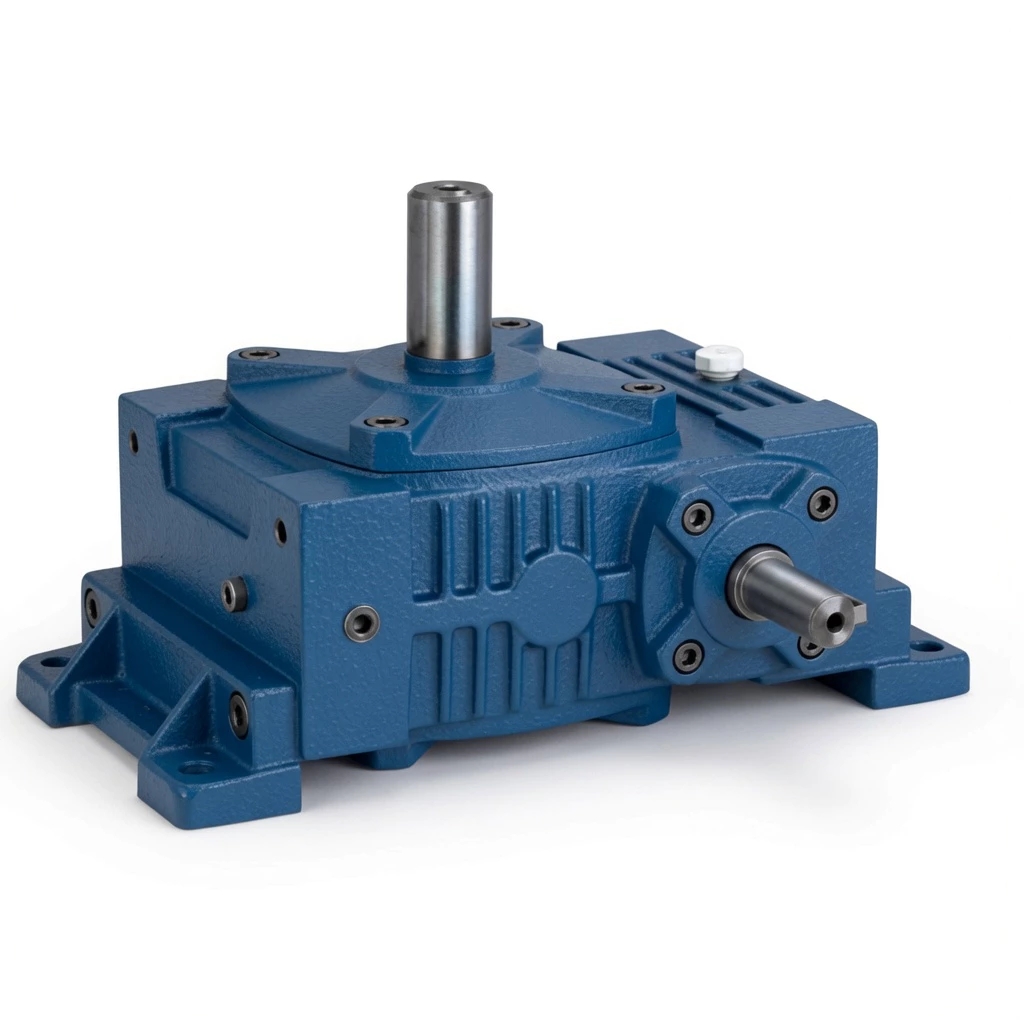

WPWX Universal Speed Cast Iron Worm Gearbox
Inverted and sub-floor drives requiring vertical downward output across multiple installation orientations — where the same gearbox model must serve equipment with output shafts pointing down in various machine configurations — combine X-type downward output with universal housing versatility. The WPWX Universal Speed Cast Iron Worm Gearbox provides the WPW-series universal body with X-type vertical downward output across 5 shaft direction configurations. Inverted and sub-floor drives from ratio 1/5 to 1/60 in any installation orientation from a single standard product.
Technical Specifications — WPWX
Key Parameters
| Parameter | Specification |
|---|---|
| Series | Universal Speed (WPW+X) |
| Housing | Solid integral cast iron (P-housing) |
| Input | Solid shaft (bilateral) |
| Output | Vertical downward (X-type) |
| Ratio | 1/5–1/60 |
| Size Range | 40–250 mm |
| Mounting | Foot-mount, vertical downward output |
| Housing Material | FC20+ grey cast iron (GG20) |
| Worm Wheel | Tin-bronze alloy ZCuSn10Pb1 |
| Worm Shaft | 20CrMnTi carburised & hardened, 55–60 HRC |
| Lubrication | N150–N220 (–30°C–40°C); N220–N320 (40°C–65°C) |
| Max Oil Temp | 95°C continuous |
| Weight Range | 6.5–430 kg |
| Key Feature | WPWX: universal W-body + X vertical downward output — inverted and sub-floor drives in universal housing with all input orientations |
Size & Performance Data
| Size (mm) | Ratio | Input Power (kW) | Output Torque (Nm) | A (mm) | AA (mm) | AB (mm) | BB (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 40 | 1/5–1/60 | 0.06–0.78 | 2.2–26.5 | 121 | 53 | 40 | 49 | 6.5 |
| 50 | 1/5–1/60 | 0.10–1.33 | 4.5–54.0 | 133 | 57 | 44 | 55 | 9 |
| 63 | 1/5–1/60 | 0.19–2.25 | 8.5–104 | 155 | 67 | 51 | 65 | 14 |
| 75 | 1/5–1/60 | 0.32–3.75 | 14.5–175 | 175 | 75 | 57 | 73 | 20 |
| 90 | 1/5–1/60 | 0.62–6.98 | 28–316 | 205 | 89 | 67 | 87 | 33 |
| 110 | 1/5–1/60 | 1.18–11.9 | 53–540 | 238 | 103 | 78 | 101 | 54 |
| 130 | 1/5–1/60 | 2.02–19.7 | 91–891 | 266 | 115 | 87 | 112 | 78 |
| 150 | 1/5–1/60 | 3.07–28.8 | 139–1304 | 302 | 131 | 100 | 128 | 113 |
| 175 | 1/5–1/60 | 5.13–45.9 | 232–2074 | 348 | 151 | 115 | 147 | 170 |
| 200 | 1/5–1/60 | 8.02–66.2 | 363–2993 | 392 | 170 | 130 | 165 | 238 |
| 250 | 1/5–1/60 | 14.0–106 | 633–4796 | 479 | 208 | 159 | 202 | 430 |
Universal W-Body Structure
The WPW-series universal housing is manufactured as a single FC20+ grey cast iron casting with bore positions, keyway orientations, and oil channels configured for the selected shaft direction. All 5 shaft direction configurations (A/B/C/D/E) use the same casting geometry with specific machining per configuration.
Hardened 20CrMnTi steel worm shaft with case-hardened tooth flanks (55–60 HRC). The worm shaft and its bearings are selected for the specific input orientation of the model — A-type (below), S-type (overhead), or bilateral — ensuring rated bearing life in the correct load direction.
Tin-bronze ZCuSn10Pb1 alloy worm wheel machined to mesh precisely with the hardened worm shaft. The bronze material provides excellent anti-seizure properties and wear-in characteristics for the worm gear mesh.
Output shaft in quenched-and-tempered steel with double-lip oil seals rated for the specific output orientation (horizontal, vertical upward O-type, vertical downward X-type, side T-type, or extended V-type). Seal selection matches the hydrostatic pressure requirements of the installed orientation.
Single-stage oil bath lubrication. Oil fill port, oil gauge, vent plug, and drain plug are positioned for the selected shaft direction configuration. Fill quantities are specified per configuration in the installation guide — do not use generic fill values across configurations.
FC20+ cast iron foot-mount base integrated with the housing casting. Four mounting holes for B3 foot mounting. The base orientation is fixed for the selected shaft direction configuration. For shaft-mount (hollow bore) applications, the torque arm boss provides housing restraint.
Core Features & Benefits
■ Universal W-Body + X Vertical Downward Output: Downward Drive in Any Orientation
WPWX provides X-type vertical downward output in all 5 WPW shaft direction configurations. Sub-floor and inverted drives in any installation orientation from one standard product.
■ X-Type Output Oil Seals — Downward-Pressure Double-Lip
Vertical downward output shaft seals are double-lip premium seals rated for the hydrostatic pressure from the oil bath above resting on the seal face — same specification as single-orientation WPX.
■ Dual Oil Chambers Calibrated for X-Type Downward Orientation
Oil fill levels are specified for vertical downward output orientation in the WPWX installation guide for each shaft direction configuration.
■ X-Type Output Bearings Rated for Hanging Load
Output shaft bearings rated for the axial forces from hanging equipment loads below the downward output shaft.
■ 5 Shaft Direction Configurations Available
All 5 shaft direction configurations (A–E) available for WPWX with X-type downward output.
■ Full WP Torque Range in Downward Configuration
WPWX rated for full WP output torques — up to 4,796 Nm at size 250 — in the X-type downward orientation across all 5 shaft direction configurations.
Industry Applications — WPWX
⚊ Sub-Floor Universal Drives — Multiple Orientations
Below-floor and sub-floor drives in multiple installation positions use the WPWX universal body for standardised downward output drives across all sub-floor positions.
☵ Inverted Mixer & Agitator Drives — Universal
Inverted mixer and agitator installations where the agitator hangs below the gearbox across multiple machine orientations use the WPWX for standardised downward output in all positions.
⚒ Gravity-Feed Equipment — Universal Downward Output
Gravity-fed dispensers, discharge screws, and bulk solid feeders with downward output shafts across multiple installation orientations use the WPWX universal downward drive.
⚔ Overhead Conveyor Track — Universal Downward Drives
Overhead conveyor track drives with downward output in multiple installation positions use the WPWX for universal downward output drive standardisation.
⚛ OEM Downward Output Universal Platform
OEM machine builders with downward output drives across multiple machine orientations specify the WPWX as their universal X-type downward output gearbox platform.
Why Choose WPWX — Competitive Comparison
| Feature | Ever-power WPWX | Alternatives |
|---|---|---|
| Output Direction | ✓ X-type vertical downward — built-in | Horizontal — right-angle adaptor needed |
| Universal Housing | ✓ 5-direction W-body — all positions | Orientation-specific WPX model |
| Sub-Floor Application | ✓ Direct downward — no adaptor stage | Right-angle head + separate stage |
| Spare Parts | ✓ One downward-output SKU for all orientations | Multiple orientation-specific SKUs |
| Hanging Load | ✓ Axial load rated for full WP torque | Same — single orientation only |
| OEM Flexibility | ✓ One product for all downward orientations | Per-orientation model required |
Quality Control & Certifications
✎ ISO 9001:2000 Certified
Every WPWX is manufactured, assembled, and tested under ISO 9001:2000 quality management. Our factory was among the first in this product category to achieve this certification.
✎ CE Marking
Full CE marking confirms compliance with EU Machinery Directive 2006/42/EC — covering safety, design standards, and manufacturing quality for all WPW-series universal configurations.
✎ Pre-Shipment Testing
Noise test (below 72 dB(A) at rated load), oil leak test (30-minute pressurisation), torque transmission test (output torque within ±5% of rated). Failed units are reworked — not shipped.
✎ Universal Configuration Quality
Each shaft direction configuration (A–E) is verified dimensionally for correct bore position, keyway orientation, and oil channel routing before leaving our production line.
Why Choose Ever-power for WPWX
We have been manufacturing WPW-series universal cast iron worm gearboxes for over two decades. Our 5-shaft-direction production process — with orientation-specific quality checks — is a core competency of our manufacturing facility.
Our CNC machining centres maintain the bore position accuracy and keyway orientation tolerances required for consistent inter-part fit across all 5 shaft direction configurations of the WPW universal body.
We export the WPW series to Australia, Europe, Southeast Asia, the Middle East, and North America. Our export documentation, CE certification, and packing standards are optimised for international procurement.
Full OEM services: custom nameplating, paint colours, shaft dimensions, flange configurations, and documentation packages. Custom shaft direction combinations and output configurations available for OEM volumes.
Our application engineers provide WPW gearbox selection, load calculation, shaft direction selection, oil specification, and installation support. Email [email protected] with your application data.
The complete WPW universal series covers solid shaft, hollow bore, IEC flange, and extended shaft variants in all output directions — horizontal, vertical up, vertical down, side, and extended. One universal platform for all drive applications.
Customer Reviews & Case Studies
“WPWX on our sub-floor drives across multiple installation positions. X-type downward output in universal housing means one product for all our below-floor drive positions. No intermediate couplings. Quality is excellent and the downward seal has performed perfectly in sub-floor conditions.”
Australia 🇦🇺
“WPWX universal X-type downward on our sub-floor and inverted drives. Universal body covers all our machine positions with downward output. Consistent quality across orders. Good practical product for sub-floor drive standardisation across multiple orientations.”
Germany 🇩🇪
“WPWX on our overhead conveyor downward output drives in multiple track positions. Universal body means one product for all track positions. X-type downward seal quality is excellent — no leaks despite the downward oil pressure on the seal face.”
China 🇨🇳
“WPWX universal downward output on our inverted mixer drives across multiple machine orientations. Universal body covers all positions with one product. Cast iron quality is excellent. Oil fill instructions for X-orientation across different shaft directions should be clearly documented per configuration.”
Egypt 🇪🇬
