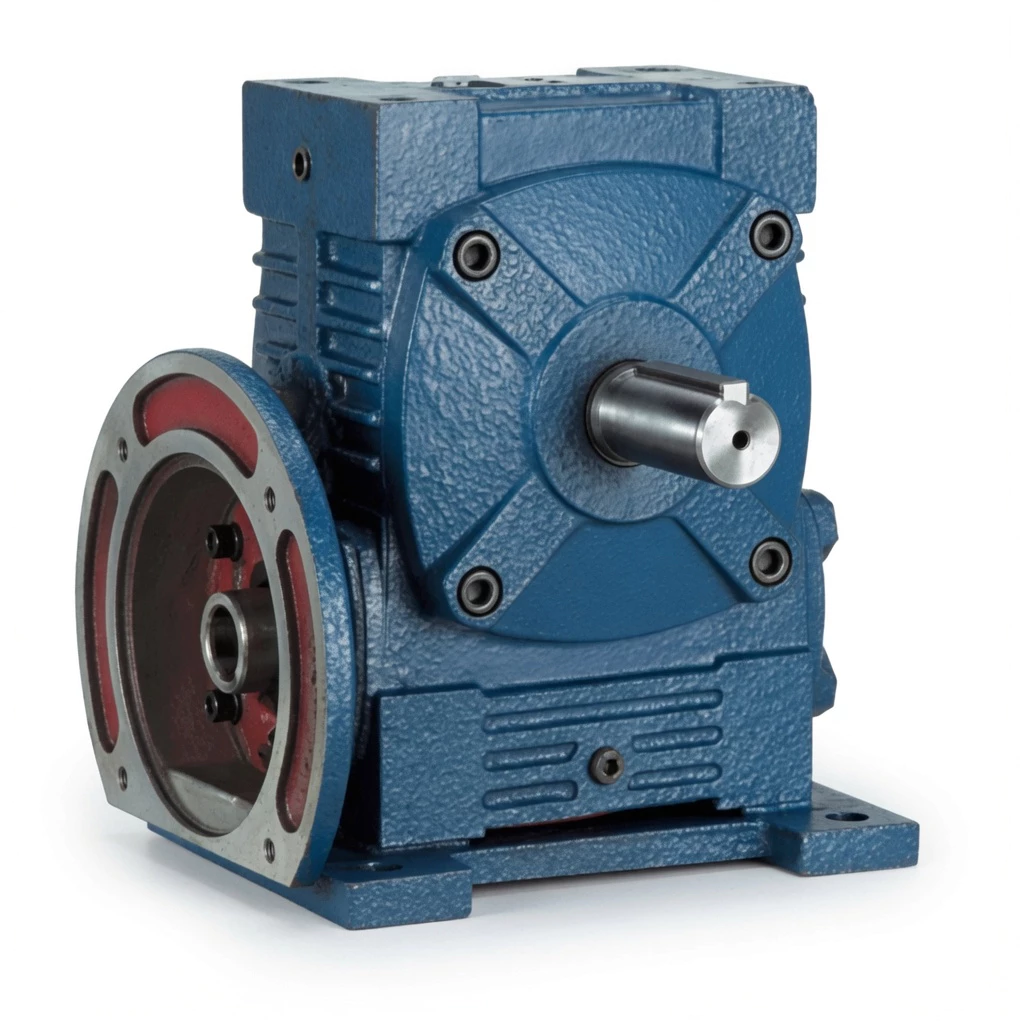

WPWDA Universal Speed Cast Iron Worm Gearbox

OEM machine designs calling for a motorised below-entry input configuration in a universal housing — where one product must serve multiple machine variants with different mounting orientations while maintaining direct IEC motor connection — describe the WPWDA Universal Speed Cast Iron Worm Gearbox. Combining the WPW-series universal body, D-type IEC motor flange in the A-type (below) input position, and D-split housing for field serviceability, the WPWDA is the standard specification for motorised A-type-input universal drive systems.

✉ Request a Quote | About Ever-power

WPWDA universal speed cast iron worm gearbox

Technical Specifications — WPWDA

WPWDA dimension drawing

Key Parameters

Parameter Specification
Series Universal Speed (WPWD+A)
Housing D-type split cast iron
Input IEC motor flange (D-type), A-type (below)
Output Solid shaft (horizontal)
Ratio 1/5–1/60
Size Range 40–250 mm
Mounting Foot-mount, D-split, IEC flange, A-input
Housing Material FC20+ grey cast iron (GG20)
Worm Wheel Tin-bronze alloy ZCuSn10Pb1
Worm Shaft 20CrMnTi carburised & hardened, 55–60 HRC
Lubrication N150–N220 (–30°C–40°C); N220–N320 (40°C–65°C)
Max Oil Temp 95°C continuous
Weight Range 7–481 kg
Key Feature WPWDA: universal body + D-IEC flange + A-type input — motorised universal gearbox with direct motor coupling from below

Size & Performance Data

Size (mm) Ratio Input Power (kW) Output Torque (Nm) A (mm) AA (mm) AB (mm) BB (mm) Weight (kg)
40 1/5–1/60 0.06–0.78 2.2–26.5 133 53 40 62 7
50 1/5–1/60 0.10–1.33 4.5–54.0 148 57 44 70 10
63 1/5–1/60 0.19–2.25 8.5–104 171 67 51 82 16
75 1/5–1/60 0.32–3.75 14.5–175 191 75 57 91 23
90 1/5–1/60 0.62–6.98 28–316 224 89 67 107 38
110 1/5–1/60 1.18–11.9 53–540 260 103 78 123 62
130 1/5–1/60 2.02–19.7 91–891 290 115 87 136 89
150 1/5–1/60 3.07–28.8 139–1304 329 131 100 155 128
175 1/5–1/60 5.13–45.9 232–2074 377 151 115 177 191
200 1/5–1/60 8.02–66.2 363–2993 424 170 130 199 267
250 1/5–1/60 14.0–106 633–4796 517 208 159 243 481

Universal W-Body Structure

WPWDA universal cast iron worm gearbox structure

■ Universal W-Body Housing
The WPW-series universal housing is manufactured as a single FC20+ grey cast iron casting with bore positions, keyway orientations, and oil channels configured for the selected shaft direction. All 5 shaft direction configurations (A/B/C/D/E) use the same casting geometry with specific machining per configuration.
■ Worm Shaft
Hardened 20CrMnTi steel worm shaft with case-hardened tooth flanks (55–60 HRC). The worm shaft and its bearings are selected for the specific input orientation of the model — A-type (below), S-type (overhead), or bilateral — ensuring rated bearing life in the correct load direction.
■ Worm Wheel
Tin-bronze ZCuSn10Pb1 alloy worm wheel machined to mesh precisely with the hardened worm shaft. The bronze material provides excellent anti-seizure properties and wear-in characteristics for the worm gear mesh.
■ Output Shaft & Seal
Output shaft in quenched-and-tempered steel with double-lip oil seals rated for the specific output orientation (horizontal, vertical upward O-type, vertical downward X-type, side T-type, or extended V-type). Seal selection matches the hydrostatic pressure requirements of the installed orientation.
■ Oil System
Single-stage oil bath lubrication. Oil fill port, oil gauge, vent plug, and drain plug are positioned for the selected shaft direction configuration. Fill quantities are specified per configuration in the installation guide — do not use generic fill values across configurations.
■ Foot-Mount Base
FC20+ cast iron foot-mount base integrated with the housing casting. Four mounting holes for B3 foot mounting. The base orientation is fixed for the selected shaft direction configuration. For shaft-mount (hollow bore) applications, the torque arm boss provides housing restraint.

Core Features & Benefits

■ D-IEC Flange (A-Input) + Universal W-Body: Motorised Below-Entry Universal Drive

The WPWDA integrates the D-type IEC motor flange in the A-type (below) input position into the WPW universal body, providing direct motorised drive capability across all 5 shaft direction configurations.

■ D-Split Housing for In-Situ Service

D-split housing cover removal allows worm wheel inspection without disturbing the motor or driven shaft — in all 5 shaft direction configurations of the WPWDA universal body.

■ Full IEC Frame Compatibility: M8 to M16

WPWDA accepts all standard IEC motor frames from M8 (0.06 kW, size 40) to M16 (14+ kW, size 250) across the universal body size range.

■ A-Type Input Oil Circuit — Validated for All 5 Shaft Directions

The WPWDA oil circuit is validated for the A-type (below) input shaft orientation across all 5 shaft direction configurations of the universal body.

■ Anti-Corrosion Coating Standard

Epoxy primer + polyurethane topcoat for resistance to process chemicals and cleaning agents in the diverse environments where the WPWDA’s versatility finds application.

■ 5 Shaft Direction Configurations Available with D-IEC Flange

All 5 shaft direction configurations (A–E) are available with the D-type IEC motor flange in A-input position — maintaining universal orientation support with motorised drive capability.

Industry Applications — WPWDA

WP universal speed cast iron worm gearboxes

Motorised A-Input Multi-Orientation OEM Drives

OEM machine builders with IEC-motored A-type-input drives in multiple machine orientations specify the WPWDA as their single motorised below-entry-input universal drive SKU.

Process Equipment — Motorised Below-Entry Drives

Process plant engineers standardising on motorised A-type-input drives across diverse equipment orientations use the WPWDA for procurement and maintenance simplification.

Packaging Machinery — Motorised Universal Standard

Packaging machinery with IEC-motored below-entry input in various machine configurations uses the WPWDA for a single motorised universal gearbox specification.

Conveyor Drives — IEC Motor, A-Input, Universal

Conveyor drives with IEC motor direct connection and below-entry input shaft across multiple conveyor orientations use the WPWDA as their motorised universal standard.

Maintenance Standardisation — A-Input IEC Fleet

Maintenance departments managing IEC-motored A-type-input drives across diverse machine orientations standardise on WPWDA for a single motorised product covering all positions.

Why Choose WPWDA — Competitive Comparison

Feature Ever-power WPWDA Alternatives
Motor Mounting ✓ D-IEC flange (A-input) — all 5 orientations Coupling + adaptor required
Housing Versatility ✓ Universal W-body — 5 configurations Orientation-specific housing
Maintenance Access ✓ D-split in situ — all orientations Teardown required
Spare Parts ✓ One motorised SKU all orientations Multiple models required
Input Position ✓ A-type below — fixed, universal body Below-entry — orientation-specific housing
Ratio Range ✓ 1/5–1/60 all orientations Same — single orientation

Quality Control & Certifications

Ever-power manufacturing facility

✎ ISO 9001:2000 Certified

Every WPWDA is manufactured, assembled, and tested under ISO 9001:2000 quality management. Our factory was among the first in this product category to achieve this certification.

✎ CE Marking

Full CE marking confirms compliance with EU Machinery Directive 2006/42/EC — covering safety, design standards, and manufacturing quality for all WPW-series universal configurations.

✎ Pre-Shipment Testing

Noise test (below 72 dB(A) at rated load), oil leak test (30-minute pressurisation), torque transmission test (output torque within ±5% of rated). Failed units are reworked — not shipped.

✎ Universal Configuration Quality

Each shaft direction configuration (A–E) is verified dimensionally for correct bore position, keyway orientation, and oil channel routing before leaving our production line.

Why Choose Ever-power for WPWDA

Ever-power precision machining

★ 20+ Years WPW Universal Series Production
We have been manufacturing WPW-series universal cast iron worm gearboxes for over two decades. Our 5-shaft-direction production process — with orientation-specific quality checks — is a core competency of our manufacturing facility.
★ CNC Precision Machining — All 5 Shaft Directions
Our CNC machining centres maintain the bore position accuracy and keyway orientation tolerances required for consistent inter-part fit across all 5 shaft direction configurations of the WPW universal body.
★ Global Export Experience
We export the WPW series to Australia, Europe, Southeast Asia, the Middle East, and North America. Our export documentation, CE certification, and packing standards are optimised for international procurement.
★ OEM Custom Capability
Full OEM services: custom nameplating, paint colours, shaft dimensions, flange configurations, and documentation packages. Custom shaft direction combinations and output configurations available for OEM volumes.
★ Technical Application Support
Our application engineers provide WPW gearbox selection, load calculation, shaft direction selection, oil specification, and installation support. Email [email protected] with your application data.
★ WPW Series Complete: From WPW to WPWDKV
The complete WPW universal series covers solid shaft, hollow bore, IEC flange, and extended shaft variants in all output directions — horizontal, vertical up, vertical down, side, and extended. One universal platform for all drive applications.

Customer Reviews & Case Studies

★★★★★

“WPWDA on our motorised process drives across multiple machine orientations. IEC motor direct mount in A-input position, universal body covers our diverse machine configurations. Split housing for in-situ service. Excellent product for our multi-orientation OEM machine range.”

Colin MacPherson — Industrial Drive Systems Australia
Australia 🇦🇺
★★★★★

“Specified WPWDA for our motorised A-input drives across our plant. Universal body means one product for all orientations. IEC direct mount eliminates our coupling maintenance across all drive positions. Consistent quality across multiple orders.”

Karin Lindqvist — Processutrustning AB
Sweden 🇸🇪
★★★★★

“WPWDA motorised universal gearbox on our production line equipment. A-type IEC input, universal body, split housing — complete motorised drive specification in one unit. Cast iron durability in our industrial environment is excellent.”

Raj Patel — Process Equipment Manufacturing Pvt Ltd
India 🇮🇳
4/5 ★★★★

“WPWDA on our processing equipment drives. Motorised A-input in universal housing covers our multi-orientation machine range. Quality consistent across orders. Good practical product for OEM standardisation.”

Oscar Herrera — Equipos Industriales SA
Argentina 🇦🇷

Frequently Asked Questions — WPWDA

▶ What is the difference between WPWDA and WPWD?
The WPWD is the general motorised universal gearbox (IEC flange, universal body, all shaft directions). The WPWDA specifically has the D-type IEC motor flange in the A-type (below) input position, which is the most common standard input orientation. For most A-type input applications, WPWDA and WPWD configuration A are equivalent. WPWDA is specified when A-type input is a fixed requirement alongside universal housing versatility.
▶ Is there a hollow bore version of the WPWDA?
Yes — the WPWDKA adds K-type hollow bore to the WPWDA’s IEC A-input flange and universal body. See the WPWDKA product entry.
▶ What is the minimum gearbox size for a 0.37 kW motor input on the WPWDA?
For 0.37 kW input at ratio 1/20: size 63 WPWDA is typically adequate with an output torque of approximately 50 Nm. Verify against the WPWDA torque table at your specific ratio. Always apply a service factor appropriate for your application type.
▶ Can the WPWDA be specified with a B14 flange face instead of B3 foot-mount?
Contact our technical team for face-mount (B14) configurations on the WPWDA universal body. Standard supply is foot-mount (B3). Flange-mount variants may be available as special configurations.
▶ What is the recommended first oil change interval for the WPWDA?
First oil change after 100–200 hours of run-in operation (to flush break-in wear particles). Subsequent oil changes every 2,500 operating hours or annually, whichever is sooner. For both oil chambers in D-split variants, change simultaneously with the same grade.

Get Your WPWDA Quote Today

Whether you need one unit for a retrofit or hundreds for an OEM production run, Ever-power has the manufacturing capacity, ISO 9001 quality system, and WPW universal series expertise to deliver the WPWDA to your exact specification. Contact our engineering team — we respond within 24 hours.

✓ OEM & Distributor partnerships welcome ✓ Custom configurations available ✓ Global shipping
