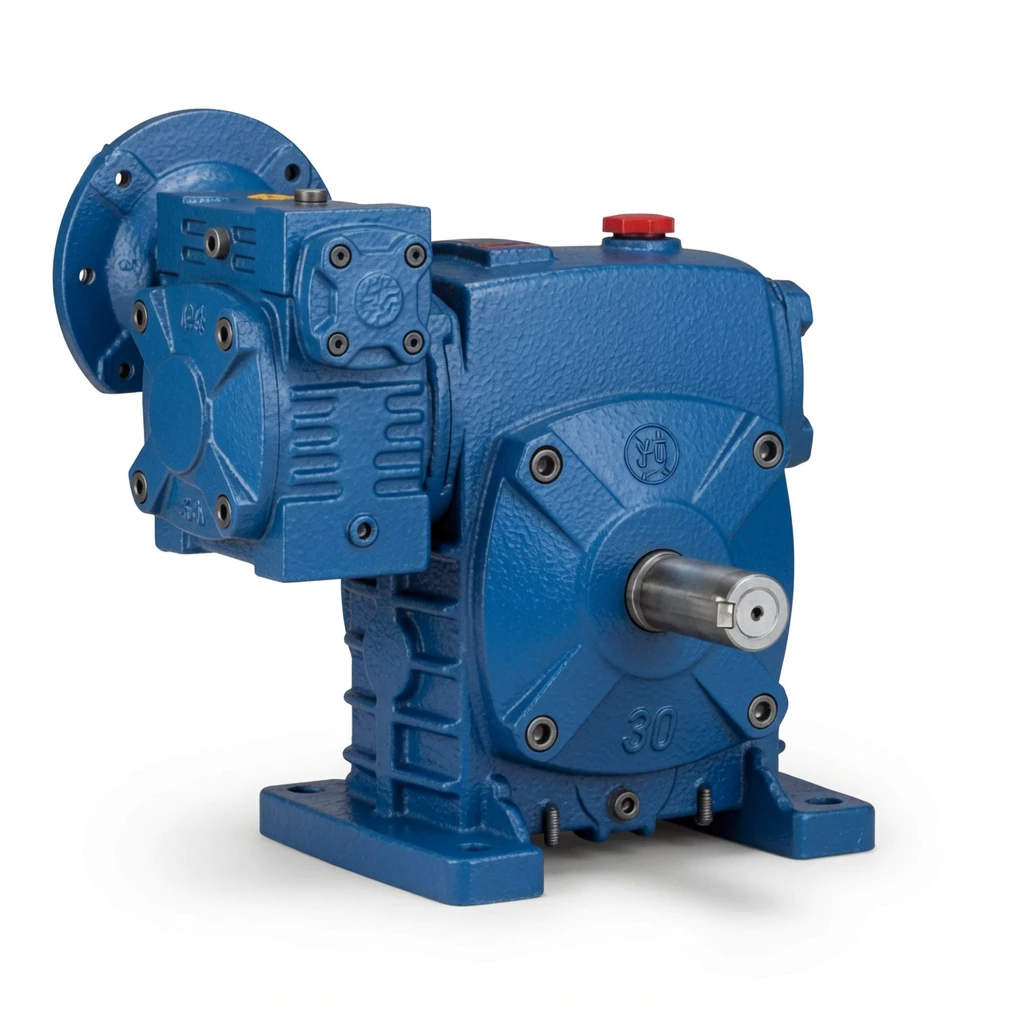

WPEDS Double Speed Cast Iron Worm Gearbox — WP Series

Large process plants with standardised overhead motor mounting platforms, direct IEC motor connections, and ultra-slow drive requirements face a three-specification challenge: overhead IEC motor (D+S), extreme double-stage ratio, and D-split housing for field maintainability at elevated positions. The WPEDS Double Speed Cast Iron Worm Gearbox satisfies all three simultaneously. It is the single catalogue unit that replaces a custom-engineered multi-component drive arrangement for overhead motorised slow process drives across refineries, cement plants, mineral processing facilities, and large chemical plants globally.

✉ Request a Quote
 | About Ever-power

■ D-IEC Flange (S-Type Overhead) + Double-Stage + D-Split: Three Specifications One Unit

WPEDS solves the three-way challenge: overhead IEC motor (D+S), ultra-high ratio (double-stage), field-maintainability (D-split). Each feature independently justifies an engineering decision; their combination in one unit is the WPEDS’s defining value.

■ Overhead Motor Weight Support — S-Type IEC Flange Rated

The WPEDS IEC flange is rated for cantilevered motor mounting in the overhead position across all standard IEC motor frames. For very heavy motors (>150 kg at sizes 155–250), an overhead motor support stand is recommended.

■ D-Split Housing Doubles Service Access at Elevated Positions

For double-stage units in elevated overhead-motor installations, D-split in-situ access is enormously valuable — avoiding crane access to dismount the overhead motor mount or driven machine for routine worm wheel service.

■ S-Type Input Oil Circuit — Validated for Combined D+S Geometry

The WPEDS oil circuit is validated for the upward input shaft orientation in the D-type split housing geometry. Oil fill quantities differ from the WPEDA (A-type) — always use WPEDS-specific installation data.

■ 9 Ratio Steps from 1/200 to 1/900

All nine ratio steps provide output speeds from 7.5 RPM down to 1.67 RPM from standard 1,500 RPM input, covering all ultra-slow overhead drive requirements in process plants.

■ CE and ISO 9001:2000 Certified — Meets Australian Standards

Full CE marking and ISO 9001:2000 certification meets Australian engineering procurement requirements for mechanical power transmission in large-scale industrial installations.

⚙ Large Plant Overhead Motorised Slow Drives

Large-scale process plants with standardised overhead motor mounting and direct IEC connections use the WPEDS for all ultra-slow drives as a single procurement specification.

⚔ Chemical Plant Slow Overhead Motor Drives

Chemical plants where motor positioning above the drive is specified for safety segregation use the WPEDS for very low agitation and conveying speeds with direct overhead IEC motor mounting.

⚒ OEM Ultra-Slow Motorised Machines — Overhead Motor

OEM machine designers requiring overhead motor configurations with double-stage ratio specify the WPEDS as their standard drive unit, eliminating two components (overhead adaptor + second stage) from every machine BOM.

☷ High-Access Elevated Drive Stations

Elevated drive stations requiring the fewest possible maintenance interventions use the WPEDS D-split housing to perform in-situ inspection without full gearbox removal — a significant safety advantage at height.

⚊ Environmental Equipment — Overhead Motor Slow Drives

Sludge de-watering presses, slow environmental separators with overhead motor configurations use the WPEDS for the appropriate overhead IEC motor mount combined with ultra-low speed.
