Description

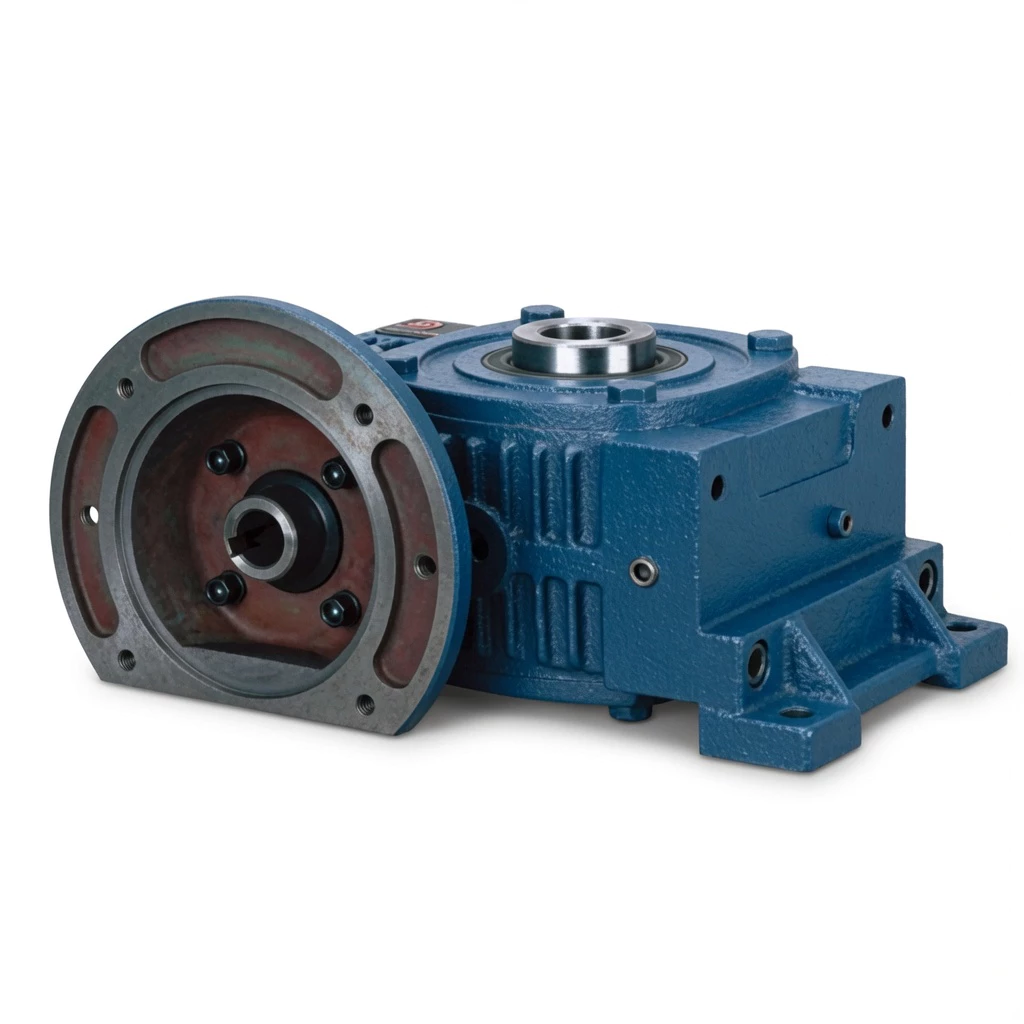

WPWDKO Universal Speed Cast Iron Worm Gearbox
The most comprehensively specified vertical drive in the universal speed series — combining IEC direct motor connection, hollow bore vertical output, D-split housing for field service, and universal installation orientation support — is the WPWDKO Universal Speed Cast Iron Worm Gearbox. D-type IEC motor flange, K-type hollow bore in the O-type vertical upward direction, D-split housing, and WPW universal body in one cast iron unit. For process engineers specifying the maximum-feature motorised hollow shaft vertical agitator drive across diverse vessel orientations, the WPWDKO is the definitive single-product catalogue solution.
Technical Specifications — WPWDKO
Key Parameters
| Parameter | Specification |
|---|---|
| Series | Universal Speed (WPWD+K+O) |
| Housing | D-type split cast iron |
| Input | IEC motor flange (D-type) |
| Output | Hollow bore (K-type), vertical upward |
| Ratio | 1/5–1/60 |
| Size Range | 40–250 mm |
| Mounting | Foot-mount, D-split, IEC flange, K hollow vertical output |
| Housing Material | FC20+ grey cast iron (GG20) |
| Worm Wheel | Tin-bronze alloy ZCuSn10Pb1 |
| Worm Shaft | 20CrMnTi carburised & hardened, 55–60 HRC |
| Lubrication | N150–N220 (–30°C–40°C); N220–N320 (40°C–65°C) |
| Max Oil Temp | 95°C continuous |
| Weight Range | 7–481 kg |
| Key Feature | WPWDKO: universal body + D-IEC flange + K hollow vertical — motorised hollow shaft agitator drive, universal housing |

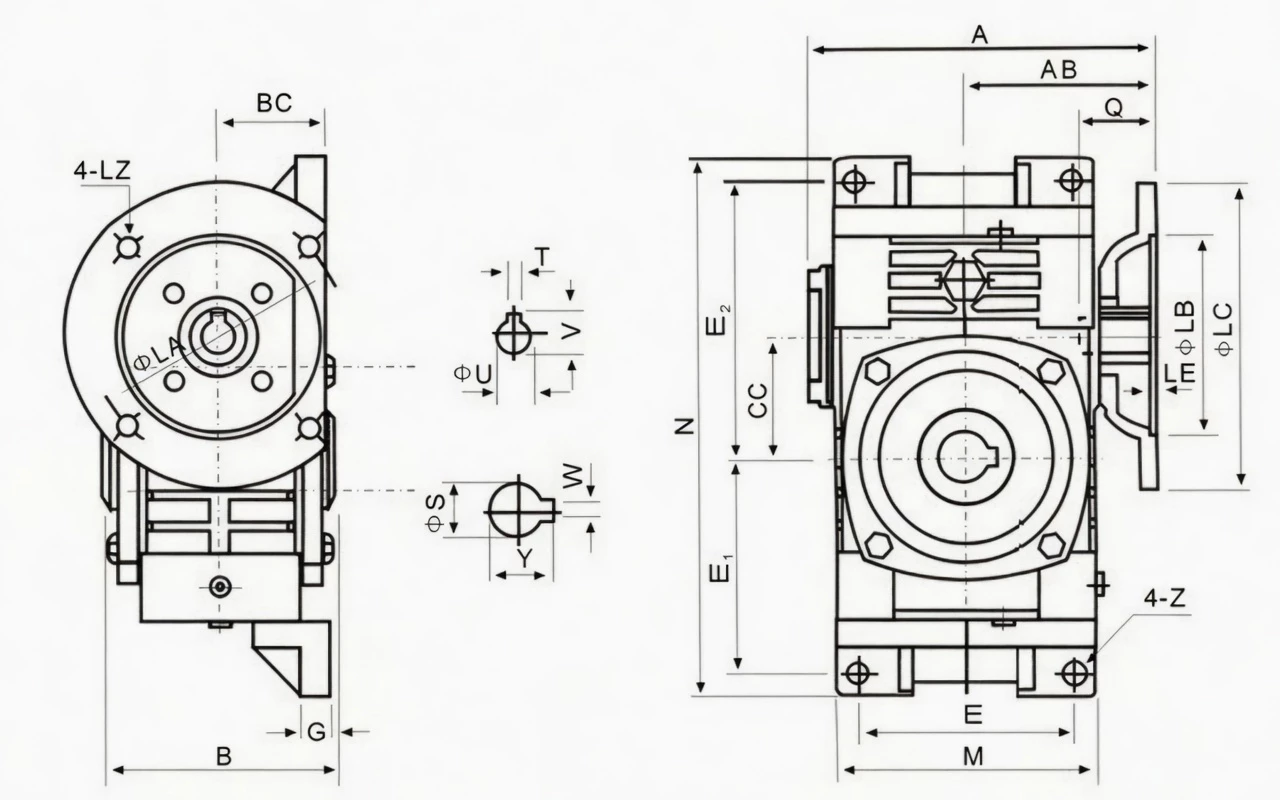

Size & Performance Data
| Size (mm) | Ratio | Input Power (kW) | Output Torque (Nm) | A (mm) | AA (mm) | AB (mm) | BB (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 40 | 1/5–1/60 | 0.06–0.78 | 2.2–26.5 | 133 | 53 | 40 | 62 | 7 |
| 50 | 1/5–1/60 | 0.10–1.33 | 4.5–54.0 | 148 | 57 | 44 | 70 | 10 |
| 63 | 1/5–1/60 | 0.19–2.25 | 8.5–104 | 171 | 67 | 51 | 82 | 16 |
| 75 | 1/5–1/60 | 0.32–3.75 | 14.5–175 | 191 | 75 | 57 | 91 | 23 |
| 90 | 1/5–1/60 | 0.62–6.98 | 28–316 | 224 | 89 | 67 | 107 | 38 |
| 110 | 1/5–1/60 | 1.18–11.9 | 53–540 | 260 | 103 | 78 | 123 | 62 |
| 130 | 1/5–1/60 | 2.02–19.7 | 91–891 | 290 | 115 | 87 | 136 | 89 |
| 150 | 1/5–1/60 | 3.07–28.8 | 139–1304 | 329 | 131 | 100 | 155 | 128 |
| 175 | 1/5–1/60 | 5.13–45.9 | 232–2074 | 377 | 151 | 115 | 177 | 191 |
| 200 | 1/5–1/60 | 8.02–66.2 | 363–2993 | 424 | 170 | 130 | 199 | 267 |
| 250 | 1/5–1/60 | 14.0–106 | 633–4796 | 517 | 208 | 159 | 243 | 481 |
Universal W-Body Structure
The WPW-series universal housing is manufactured as a single FC20+ grey cast iron casting with bore positions, keyway orientations, and oil channels configured for the selected shaft direction. All 5 shaft direction configurations (A/B/C/D/E) use the same casting geometry with specific machining per configuration.
Hardened 20CrMnTi steel worm shaft with case-hardened tooth flanks (55–60 HRC). The worm shaft and its bearings are selected for the specific input orientation of the model — A-type (below), S-type (overhead), or bilateral — ensuring rated bearing life in the correct load direction.
Tin-bronze ZCuSn10Pb1 alloy worm wheel machined to mesh precisely with the hardened worm shaft. The bronze material provides excellent anti-seizure properties and wear-in characteristics for the worm gear mesh.
Output shaft in quenched-and-tempered steel with double-lip oil seals rated for the specific output orientation (horizontal, vertical upward O-type, vertical downward X-type, side T-type, or extended V-type). Seal selection matches the hydrostatic pressure requirements of the installed orientation.
Single-stage oil bath lubrication. Oil fill port, oil gauge, vent plug, and drain plug are positioned for the selected shaft direction configuration. Fill quantities are specified per configuration in the installation guide — do not use generic fill values across configurations.
FC20+ cast iron foot-mount base integrated with the housing casting. Four mounting holes for B3 foot mounting. The base orientation is fixed for the selected shaft direction configuration. For shaft-mount (hollow bore) applications, the torque arm boss provides housing restraint.
Core Features & Benefits
■ 4-Feature Integration: D-IEC Flange + K Hollow Vertical + D-Split + Universal W-Body
The WPWDKO combines the four most requested motorised vertical drive features: IEC motor flange (D), hollow bore vertical output (K+O), in-situ maintenance (D-split), and universal orientation (W-body). Four specifications. One catalogue unit.
■ IEC Flange + K Hollow Bore: Zero Couplings Both Sides
Motor bolts to D-type IEC flange — no input coupling. Driven shaft inserts into K hollow bore vertical output — no output coupling. Complete zero-coupling-both-sides motorised hollow shaft vertical drive.
■ D-Split Housing: In-Situ Worm Wheel Access at Vessel Top
D-split cover removes without disturbing motor or agitator shaft — in all 5 shaft direction configurations. Motor stays mounted. Agitator shaft stays connected. Only the cover is removed for routine service.
All 5 shaft direction configurations (A–E) available with D+K+O+D-split features. Full universal orientation coverage maintained at maximum feature integration.
■ Full WP Performance: 4,796 Nm, 1/5–1/60
No performance derating for maximum feature combination. Full WP output torques and ratio range in all 5 shaft direction configurations.
■ CE + ISO 9001:2000 — Full Certification for Full Feature Set
All 5 configurations with D+K+O features are covered by ISO 9001:2000 and CE certification.
Industry Applications — WPWDKO
⚙ Maximum Integration Motorised Hollow Shaft Vertical
Applications requiring IEC motor direct mount, hollow bore vertical output, D-split maintenance access, and universal installation orientation from one standard unit find the WPWDKO uniquely satisfying all specifications simultaneously.
⚒ Pharmaceutical & Biotech — Premium Hollow Shaft Universal
Pharmaceutical and biotech facilities with hollow shaft bioreactor agitators across multiple vessel orientations specify the WPWDKO as their premium motorised hollow shaft drive standard.
⚔ Chemical Process — Maximum Feature Hollow Vertical
Chemical process vessels requiring motorised IEC drive, hollow shaft agitator connection, vertical output, and accessible housing across diverse vessel orientations use the WPWDKO.
⚊ OEM Maximum Integration Vertical Platform
OEM equipment builders designing the most highly integrated motorised hollow shaft vertical drive systems specify the WPWDKO as their single drive unit eliminating external components on both sides.
☷ Fleet Maximum BOM Reduction — Motorised Hollow Vertical
Industrial teams standardising motorised hollow shaft vertical drives across multiple orientations specify the WPWDKO for maximum BOM simplification: one SKU, all positions, all features.
Why Choose WPWDKO — Competitive Comparison
| Feature | Ever-power WPWDKO | Alternatives |
|---|---|---|
| IEC Motor Mount | ✓ D-flange — direct, all orientations | Coupling + adaptor required |
| Output | ✓ K hollow bore in vertical (O) direction | Solid shaft + right-angle adaptor |
| Universal Orientation | ✓ 5-direction W-body | Orientation-specific per model |
| Housing Maintenance | ✓ D-split in situ — vessel top, all positions | Full teardown required |
| External Hardware | ✓ Zero couplings input or output | Minimum 1 coupling + adaptor |
| BOM Reduction | ✓ 1 unit: motor direct + hollow + vertical + all orientations | Multiple components required |
Quality Control & Certifications
✎ ISO 9001:2000 Certified
Every WPWDKO is manufactured, assembled, and tested under ISO 9001:2000 quality management. Our factory was among the first in this product category to achieve this certification.
✎ CE Marking
Full CE marking confirms compliance with EU Machinery Directive 2006/42/EC — covering safety, design standards, and manufacturing quality for all WPW-series universal configurations.
✎ Pre-Shipment Testing
Noise test (below 72 dB(A) at rated load), oil leak test (30-minute pressurisation), torque transmission test (output torque within ±5% of rated). Failed units are reworked — not shipped.
✎ Universal Configuration Quality
Each shaft direction configuration (A–E) is verified dimensionally for correct bore position, keyway orientation, and oil channel routing before leaving our production line.
Why Choose Ever-power for WPWDKO
We have been manufacturing WPW-series universal cast iron worm gearboxes for over two decades. Our 5-shaft-direction production process — with orientation-specific quality checks — is a core competency of our manufacturing facility.
Our CNC machining centres maintain the bore position accuracy and keyway orientation tolerances required for consistent inter-part fit across all 5 shaft direction configurations of the WPW universal body.
We export the WPW series to Australia, Europe, Southeast Asia, the Middle East, and North America. Our export documentation, CE certification, and packing standards are optimised for international procurement.
Full OEM services: custom nameplating, paint colours, shaft dimensions, flange configurations, and documentation packages. Custom shaft direction combinations and output configurations available for OEM volumes.
Our application engineers provide WPW gearbox selection, load calculation, shaft direction selection, oil specification, and installation support. Email [email protected] with your application data.

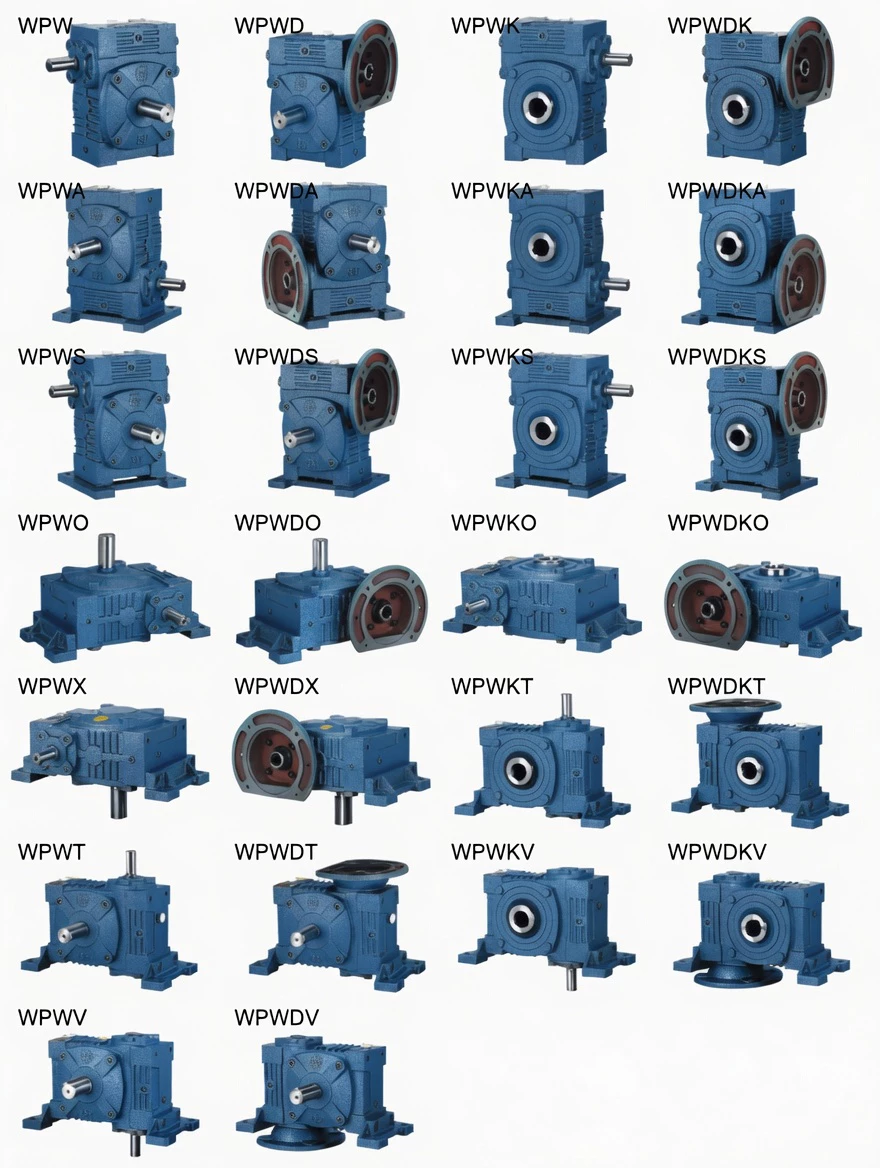

The complete WPW universal series covers solid shaft, hollow bore, IEC flange, and extended shaft variants in all output directions — horizontal, vertical up, vertical down, side, and extended. One universal platform for all drive applications.
Customer Reviews & Case Studies
“WPWDKO is our hollow shaft agitator drive standard across all vessel orientations. IEC direct motor, hollow bore vertical output, universal body, D-split housing. Zero couplings. One product specification for our entire vessel range. After 24 months in pharmaceutical service, every unit performing perfectly.”
Australia 🇦🇺
“WPWDKO satisfies our complete hollow shaft agitator drive specification across diverse bioreactor orientations. IEC direct mount, hollow bore vertical output, split housing for CIP maintenance access, universal body. Outstanding engineering product.”
Germany 🇩🇪
“WPWDKO drives our hollow shaft bioreactor agitators across our diverse vessel range. Four-feature combination in one standard catalogue unit is technically remarkable. Quality and dimensional precision are consistent with our highest-specification requirements.”
Japan 🇯🇵
“WPWDKO is our validated standard for all hollow shaft reactor agitators in diverse orientations. Four features in one catalogue unit eliminated four components per agitator and simplified GMP validation. Cost reduction plus validation simplification — outstanding dual benefit.”
France 🇫🇷
Frequently Asked Questions — WPWDKO
Get Your WPWDKO Quote Today
Whether you need one unit for a retrofit or hundreds for an OEM production run, Ever-power has the manufacturing capacity, ISO 9001 quality system, and WPW universal series expertise to deliver the WPWDKO to your exact specification. Contact our engineering team — we respond within 24 hours.
