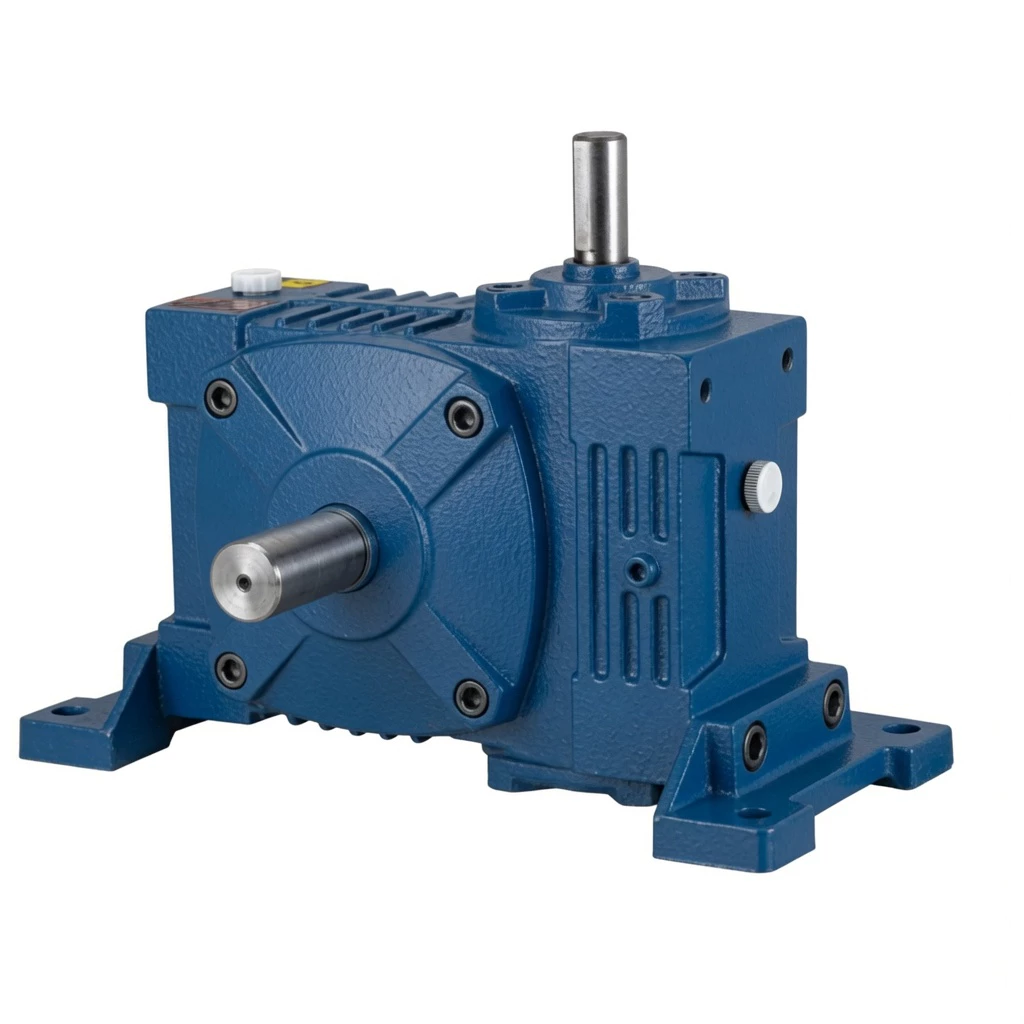

WPWT Universal Speed Cast Iron Worm Gearbox
Right-angle drives delivering power to a horizontal side output — 90 degrees from the input axis — in equipment that must also work across multiple installation orientations require a gearbox combining T-type side output geometry with universal housing versatility. The WPWT Universal Speed Cast Iron Worm Gearbox provides the WPW-series universal body with T-type horizontal side output across 5 shaft direction configurations. Compact right-angle side drives from ratio 1/5 to 1/60 in any installation orientation from a single standard product.
Technical Specifications — WPWT
Key Parameters
| Parameter | Specification |
|---|---|
| Series | Universal Speed (WPW+T) |
| Housing | Solid integral cast iron (P-housing) |
| Input | Solid shaft (bilateral) |
| Output | Horizontal side (T-type, 90° to input axis) |
| Ratio | 1/5–1/60 |
| Size Range | 40–250 mm |
| Mounting | Foot-mount, T-type side output |
| Housing Material | FC20+ grey cast iron (GG20) |
| Worm Wheel | Tin-bronze alloy ZCuSn10Pb1 |
| Worm Shaft | 20CrMnTi carburised & hardened, 55–60 HRC |
| Lubrication | N150–N220 (–30°C–40°C); N220–N320 (40°C–65°C) |
| Max Oil Temp | 95°C continuous |
| Weight Range | 6.5–430 kg |
| Key Feature | WPWT: universal W-body + T-type side horizontal output — 90-degree power turn in universal housing for compact right-angle drives |
Size & Performance Data
| Size (mm) | Ratio | Input Power (kW) | Output Torque (Nm) | A (mm) | AA (mm) | AB (mm) | BB (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 40 | 1/5–1/60 | 0.06–0.78 | 2.2–26.5 | 121 | 53 | 40 | 49 | 6.5 |
| 50 | 1/5–1/60 | 0.10–1.33 | 4.5–54.0 | 133 | 57 | 44 | 55 | 9 |
| 63 | 1/5–1/60 | 0.19–2.25 | 8.5–104 | 155 | 67 | 51 | 65 | 14 |
| 75 | 1/5–1/60 | 0.32–3.75 | 14.5–175 | 175 | 75 | 57 | 73 | 20 |
| 90 | 1/5–1/60 | 0.62–6.98 | 28–316 | 205 | 89 | 67 | 87 | 33 |
| 110 | 1/5–1/60 | 1.18–11.9 | 53–540 | 238 | 103 | 78 | 101 | 54 |
| 130 | 1/5–1/60 | 2.02–19.7 | 91–891 | 266 | 115 | 87 | 112 | 78 |
| 150 | 1/5–1/60 | 3.07–28.8 | 139–1304 | 302 | 131 | 100 | 128 | 113 |
| 175 | 1/5–1/60 | 5.13–45.9 | 232–2074 | 348 | 151 | 115 | 147 | 170 |
| 200 | 1/5–1/60 | 8.02–66.2 | 363–2993 | 392 | 170 | 130 | 165 | 238 |
| 250 | 1/5–1/60 | 14.0–106 | 633–4796 | 479 | 208 | 159 | 202 | 430 |
Universal W-Body Structure
The WPW-series universal housing is manufactured as a single FC20+ grey cast iron casting with bore positions, keyway orientations, and oil channels configured for the selected shaft direction. All 5 shaft direction configurations (A/B/C/D/E) use the same casting geometry with specific machining per configuration.
Hardened 20CrMnTi steel worm shaft with case-hardened tooth flanks (55–60 HRC). The worm shaft and its bearings are selected for the specific input orientation of the model — A-type (below), S-type (overhead), or bilateral — ensuring rated bearing life in the correct load direction.
Tin-bronze ZCuSn10Pb1 alloy worm wheel machined to mesh precisely with the hardened worm shaft. The bronze material provides excellent anti-seizure properties and wear-in characteristics for the worm gear mesh.
Output shaft in quenched-and-tempered steel with double-lip oil seals rated for the specific output orientation (horizontal, vertical upward O-type, vertical downward X-type, side T-type, or extended V-type). Seal selection matches the hydrostatic pressure requirements of the installed orientation.
Single-stage oil bath lubrication. Oil fill port, oil gauge, vent plug, and drain plug are positioned for the selected shaft direction configuration. Fill quantities are specified per configuration in the installation guide — do not use generic fill values across configurations.
FC20+ cast iron foot-mount base integrated with the housing casting. Four mounting holes for B3 foot mounting. The base orientation is fixed for the selected shaft direction configuration. For shaft-mount (hollow bore) applications, the torque arm boss provides housing restraint.
Core Features & Benefits
■ Universal W-Body + T-Type Side Output: Right-Angle Drive in Any Orientation
The WPWT provides T-type horizontal side output (90° to input axis) in all 5 WPW shaft direction configurations — compact right-angle drive in any installation orientation from one standard product.
■ T-Type Output: 90-Degree Power Turn in Compact Cast Iron Housing
The T-type output shaft is positioned at 90 degrees to the worm input axis, providing right-angle power transmission in a compact cast iron housing without the bulk and cost of additional bevel stages.
■ Full WP Torque Range Through T-Type Output
WPWT T-type side output is rated for full WP output torques — up to 4,796 Nm at size 250 — in all 5 shaft direction configurations.
■ T-Output Oil Seals — Side Shaft Geometry
T-type output shaft seals are specified for the horizontal side output shaft orientation, ensuring oil retention in the side output configuration across all installation orientations.
■ 5 Shaft Direction Configurations Available
All 5 shaft direction configurations (A–E) available for the WPWT with T-type side output. Multiple input shaft positions available while maintaining the side output direction.
■ Ratios 1/5–1/60 in All T-Output Configurations
Full WP ratio range available in all WPWT configurations for diverse right-angle drive speed requirements.
Industry Applications — WPWT
⚒ Right-Angle Side Drives — Universal Housing
Equipment requiring compact right-angle side output across multiple installation orientations uses the WPWT universal body for standardised right-angle drive performance in all positions.
⚔ OEM Compact Right-Angle Universal Platform
OEM machine builders with T-type side output drives in multiple machine orientations specify the WPWT as their universal right-angle drive platform.
☵ Conveyor Turn Drives — Universal Side Output
Conveyor systems requiring side-output turns and transfers in multiple orientations use the WPWT universal body for standardised right-angle drive across all conveyor configurations.
⚊ Packaging & Assembly — Side Output Universal
Packaging and assembly machinery with side output drives in diverse machine orientations uses the WPWT for combined right-angle output and universal mounting versatility.
⚛ General Side Output — Universal Installation
Any application requiring T-type horizontal side output across multiple installation orientations benefits from the WPWT’s universal body combined with side output geometry.
Why Choose WPWT — Competitive Comparison
| Feature | Ever-power WPWT | Alternatives |
|---|---|---|
| Output Direction | ✓ T-type side horizontal — 90° built-in | Inline — separate right-angle stage needed |
| Universal Housing | ✓ 5-direction W-body — all positions | Orientation-specific per model |
| Compactness | ✓ Single housing — right-angle integral | Inline + bevel stage adds length |
| OEM Standardisation | ✓ One side-output SKU for all orientations | Multiple orientation-specific SKUs |
| Torque Range | ✓ Full WP range in side output | Same — single orientation only |
| Installation Versatility | ✓ Multiple input positions for same output direction | Fixed geometry both sides |
Quality Control & Certifications
✎ ISO 9001:2000 Certified
Every WPWT is manufactured, assembled, and tested under ISO 9001:2000 quality management. Our factory was among the first in this product category to achieve this certification.
✎ CE Marking
Full CE marking confirms compliance with EU Machinery Directive 2006/42/EC — covering safety, design standards, and manufacturing quality for all WPW-series universal configurations.
✎ Pre-Shipment Testing
Noise test (below 72 dB(A) at rated load), oil leak test (30-minute pressurisation), torque transmission test (output torque within ±5% of rated). Failed units are reworked — not shipped.
✎ Universal Configuration Quality
Each shaft direction configuration (A–E) is verified dimensionally for correct bore position, keyway orientation, and oil channel routing before leaving our production line.
Why Choose Ever-power for WPWT
We have been manufacturing WPW-series universal cast iron worm gearboxes for over two decades. Our 5-shaft-direction production process — with orientation-specific quality checks — is a core competency of our manufacturing facility.
Our CNC machining centres maintain the bore position accuracy and keyway orientation tolerances required for consistent inter-part fit across all 5 shaft direction configurations of the WPW universal body.
We export the WPW series to Australia, Europe, Southeast Asia, the Middle East, and North America. Our export documentation, CE certification, and packing standards are optimised for international procurement.
Full OEM services: custom nameplating, paint colours, shaft dimensions, flange configurations, and documentation packages. Custom shaft direction combinations and output configurations available for OEM volumes.
Our application engineers provide WPW gearbox selection, load calculation, shaft direction selection, oil specification, and installation support. Email [email protected] with your application data.
The complete WPW universal series covers solid shaft, hollow bore, IEC flange, and extended shaft variants in all output directions — horizontal, vertical up, vertical down, side, and extended. One universal platform for all drive applications.
Customer Reviews & Case Studies
“WPWT on our conveyor side-output turn drives across multiple conveyor orientations. Universal body + side output = one product for all our right-angle conveyor positions. Compact housing. Consistent quality. Excellent product for right-angle conveyor standardisation.”
Australia 🇦🇺
“WPWT side output universal on our packaging machinery right-angle drives. T-type output provides the 90-degree turn we need. Universal body means one product for our multi-orientation machine range. Quality is consistent and dimensions accurate.”
Germany 🇩🇪
“WPWT on our assembly line right-angle drives in multiple orientations. Side output provides the compact right-angle turn our line layout requires. Universal body covers all our drive positions. Reliable quality across multiple orders.”
Mexico 🇲🇽
“WPWT universal T-type side output on our processing equipment. The right-angle output in universal housing covers our multi-orientation machine range. Good quality and consistent dimensions. Practical product for right-angle drive standardisation.”
China 🇨🇳
