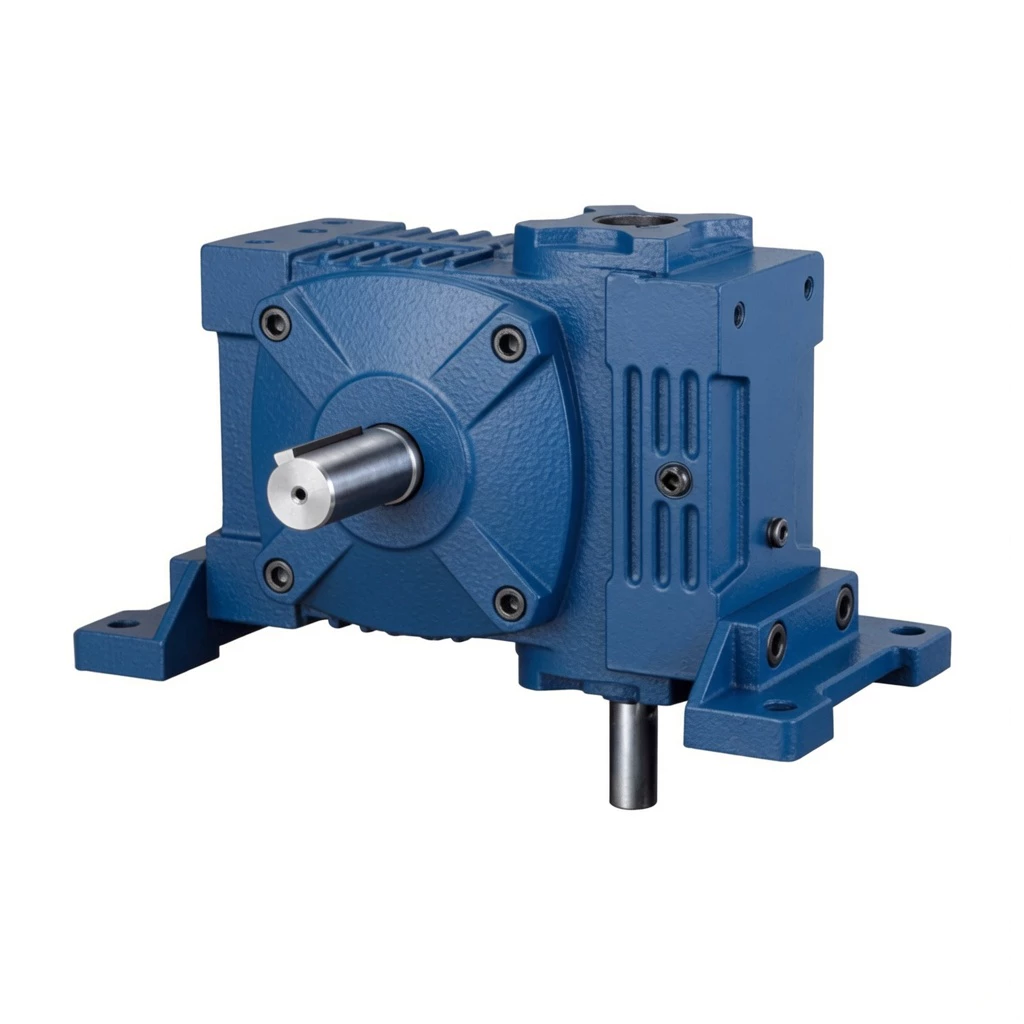

WPWV Universal Speed Cast Iron Worm Gearbox
Extended output shaft drives — applications where the gearbox output shaft must be longer than standard to span a distance, drive multiple sprockets, or connect to equipment spaced far from the gearbox body — in a universal housing platform require combining V-type extended output geometry with universal installation orientation support. The WPWV Universal Speed Cast Iron Worm Gearbox provides the WPW-series universal body with V-type extended solid output shaft across 5 shaft direction configurations. Extended shaft drives from ratio 1/5 to 1/60 in any installation orientation from a single standard product.
Technical Specifications — WPWV
Key Parameters
| Parameter | Specification |
|---|---|
| Series | Universal Speed (WPW+V) |
| Housing | Solid integral cast iron (P-housing) |
| Input | Solid shaft (bilateral) |
| Output | Extended solid shaft (V-type) |
| Ratio | 1/5–1/60 |
| Size Range | 40–250 mm |
| Mounting | Foot-mount, V extended output shaft |
| Housing Material | FC20+ grey cast iron (GG20) |
| Worm Wheel | Tin-bronze alloy ZCuSn10Pb1 |
| Worm Shaft | 20CrMnTi carburised & hardened, 55–60 HRC |
| Lubrication | N150–N220 (–30°C–40°C); N220–N320 (40°C–65°C) |
| Max Oil Temp | 95°C continuous |
| Weight Range | 6.5–430 kg |
| Key Feature | WPWV: universal W-body + V extended output shaft — long-shaft drives and multi-equipment chain drives in universal housing |
Size & Performance Data
| Size (mm) | Ratio | Input Power (kW) | Output Torque (Nm) | A (mm) | AA (mm) | AB (mm) | BB (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 40 | 1/5–1/60 | 0.06–0.78 | 2.2–26.5 | 121 | 53 | 40 | 49 | 6.5 |
| 50 | 1/5–1/60 | 0.10–1.33 | 4.5–54.0 | 133 | 57 | 44 | 55 | 9 |
| 63 | 1/5–1/60 | 0.19–2.25 | 8.5–104 | 155 | 67 | 51 | 65 | 14 |
| 75 | 1/5–1/60 | 0.32–3.75 | 14.5–175 | 175 | 75 | 57 | 73 | 20 |
| 90 | 1/5–1/60 | 0.62–6.98 | 28–316 | 205 | 89 | 67 | 87 | 33 |
| 110 | 1/5–1/60 | 1.18–11.9 | 53–540 | 238 | 103 | 78 | 101 | 54 |
| 130 | 1/5–1/60 | 2.02–19.7 | 91–891 | 266 | 115 | 87 | 112 | 78 |
| 150 | 1/5–1/60 | 3.07–28.8 | 139–1304 | 302 | 131 | 100 | 128 | 113 |
| 175 | 1/5–1/60 | 5.13–45.9 | 232–2074 | 348 | 151 | 115 | 147 | 170 |
| 200 | 1/5–1/60 | 8.02–66.2 | 363–2993 | 392 | 170 | 130 | 165 | 238 |
| 250 | 1/5–1/60 | 14.0–106 | 633–4796 | 479 | 208 | 159 | 202 | 430 |
Universal W-Body Structure
The WPW-series universal housing is manufactured as a single FC20+ grey cast iron casting with bore positions, keyway orientations, and oil channels configured for the selected shaft direction. All 5 shaft direction configurations (A/B/C/D/E) use the same casting geometry with specific machining per configuration.
Hardened 20CrMnTi steel worm shaft with case-hardened tooth flanks (55–60 HRC). The worm shaft and its bearings are selected for the specific input orientation of the model — A-type (below), S-type (overhead), or bilateral — ensuring rated bearing life in the correct load direction.
Tin-bronze ZCuSn10Pb1 alloy worm wheel machined to mesh precisely with the hardened worm shaft. The bronze material provides excellent anti-seizure properties and wear-in characteristics for the worm gear mesh.
Output shaft in quenched-and-tempered steel with double-lip oil seals rated for the specific output orientation (horizontal, vertical upward O-type, vertical downward X-type, side T-type, or extended V-type). Seal selection matches the hydrostatic pressure requirements of the installed orientation.
Single-stage oil bath lubrication. Oil fill port, oil gauge, vent plug, and drain plug are positioned for the selected shaft direction configuration. Fill quantities are specified per configuration in the installation guide — do not use generic fill values across configurations.
FC20+ cast iron foot-mount base integrated with the housing casting. Four mounting holes for B3 foot mounting. The base orientation is fixed for the selected shaft direction configuration. For shaft-mount (hollow bore) applications, the torque arm boss provides housing restraint.
Core Features & Benefits
■ Universal W-Body + V Extended Output Shaft: Long Shaft Drive in Any Orientation
WPWV provides V-type extended solid output shaft in all 5 WPW shaft direction configurations. Extended output shaft length across any installation orientation from one standard product.
■ V-Type Extended Shaft: Greater Span from Gearbox Body
The V-type extended output shaft is longer than the standard output shaft — providing greater reach from the gearbox housing face for multi-sprocket, wide drum, or spanning applications.
■ Extended Shaft Rated for Overhang Loads
The V-type extended shaft is designed with the shaft diameter and bearing specification to handle the overhang bending moment generated by the extended shaft length and loads applied at the shaft end.
■ Full WP Torque Through Extended Shaft
WPWV V-type extended output is rated for full WP output torques — up to 4,796 Nm at size 250 — subject to the overhang load limits specified for the extended shaft length.
■ 5 Shaft Direction Configurations Available
All 5 shaft direction configurations (A–E) available for the WPWV with V-type extended output. Universal orientation with extended shaft capability.
■ Ratios 1/5–1/60 in All V-Output Configurations
Full WP ratio range available in all WPWV configurations.
Industry Applications — WPWV
⚒ Extended Shaft Multi-Sprocket Drives
Drives requiring the gearbox output shaft to extend through multiple sprocket positions or span a long distance use the WPWV V-type extended output in the universal housing for flexible shaft positioning.
⚔ Wide Belt & Multi-Drum Conveyor Drives
Conveyor systems with wide belts or multiple drums requiring a long output shaft to span the drum width use the WPWV for extended shaft length with universal body orientation support.
☵ OEM Extended Output Universal Platform
OEM machine builders with extended shaft output requirements across multiple machine orientations specify the WPWV as their universal extended shaft drive platform.
⚊ Material Handling — Extended Shaft Span
Material handling equipment requiring the drive shaft to extend beyond the gearbox body for mechanical reasons uses the WPWV for extended output length in any installation orientation.
⚛ General Extended Output — Universal Housing
Any application requiring an extended solid output shaft across multiple installation orientations benefits from the WPWV’s V-type extended output combined with universal body versatility.
Why Choose WPWV — Competitive Comparison
| Feature | Ever-power WPWV | Alternatives |
|---|---|---|
| Output Shaft Length | ✓ V-type extended — longer reach from housing | Standard — shorter reach |
| Multi-Sprocket Capability | ✓ Extended shaft spans multiple positions | Standard shaft limited to one position |
| Universal Housing | ✓ 5-direction W-body — all positions | Orientation-specific per model |
| Wide Drum Application | ✓ V-type spans wide drum width | Standard shaft requires adaptor |
| OEM Flexibility | ✓ One extended-shaft SKU for all orientations | Multiple orientation-specific SKUs |
| Overhang Rating | ✓ Extended shaft diameter rated for bending | Standard shaft — less overhang capacity |
Quality Control & Certifications
✎ ISO 9001:2000 Certified
Every WPWV is manufactured, assembled, and tested under ISO 9001:2000 quality management. Our factory was among the first in this product category to achieve this certification.
✎ CE Marking
Full CE marking confirms compliance with EU Machinery Directive 2006/42/EC — covering safety, design standards, and manufacturing quality for all WPW-series universal configurations.
✎ Pre-Shipment Testing
Noise test (below 72 dB(A) at rated load), oil leak test (30-minute pressurisation), torque transmission test (output torque within ±5% of rated). Failed units are reworked — not shipped.
✎ Universal Configuration Quality
Each shaft direction configuration (A–E) is verified dimensionally for correct bore position, keyway orientation, and oil channel routing before leaving our production line.
Why Choose Ever-power for WPWV
We have been manufacturing WPW-series universal cast iron worm gearboxes for over two decades. Our 5-shaft-direction production process — with orientation-specific quality checks — is a core competency of our manufacturing facility.
Our CNC machining centres maintain the bore position accuracy and keyway orientation tolerances required for consistent inter-part fit across all 5 shaft direction configurations of the WPW universal body.
We export the WPW series to Australia, Europe, Southeast Asia, the Middle East, and North America. Our export documentation, CE certification, and packing standards are optimised for international procurement.
Full OEM services: custom nameplating, paint colours, shaft dimensions, flange configurations, and documentation packages. Custom shaft direction combinations and output configurations available for OEM volumes.
Our application engineers provide WPW gearbox selection, load calculation, shaft direction selection, oil specification, and installation support. Email [email protected] with your application data.
The complete WPW universal series covers solid shaft, hollow bore, IEC flange, and extended shaft variants in all output directions — horizontal, vertical up, vertical down, side, and extended. One universal platform for all drive applications.
Customer Reviews & Case Studies
“WPWV extended output on our wide conveyor drum drives. V-type extended shaft spans the drum width — no need for a separate shaft extension. Universal body covers our multiple conveyor orientations. Quality is consistent and the extended shaft is accurately machined to our specification.”
Australia 🇦🇺
“WPWV on our multi-sprocket chain drive systems. Extended output shaft drives through multiple sprocket positions in one pass. Universal body covers our diverse installation positions. Excellent practical product for extended shaft drive applications.”
Germany 🇩🇪
“WPWV universal extended output on our production line drives. V-type extended shaft provides the shaft length we need for our multi-position drives. Universal body means one product for all machine orientations. Quality consistent across orders.”
Poland 🇵🇱
“WPWV universal extended shaft output on our processing equipment. Extended output shaft is accurately machined. Universal body covers our multi-orientation machine range. Good quality and practical product for extended shaft drive applications.”
China 🇨🇳
Frequently Asked Questions — WPWV
Get Your WPWV Quote Today
Whether you need one unit for a retrofit or hundreds for an OEM production run, Ever-power has the manufacturing capacity, ISO 9001 quality system, and WPW universal series expertise to deliver the WPWV to your exact specification. Contact our engineering team — we respond within 24 hours.
✓ OEM & Distributor partnerships welcome ✓ Custom configurations available ✓ Global shipping
