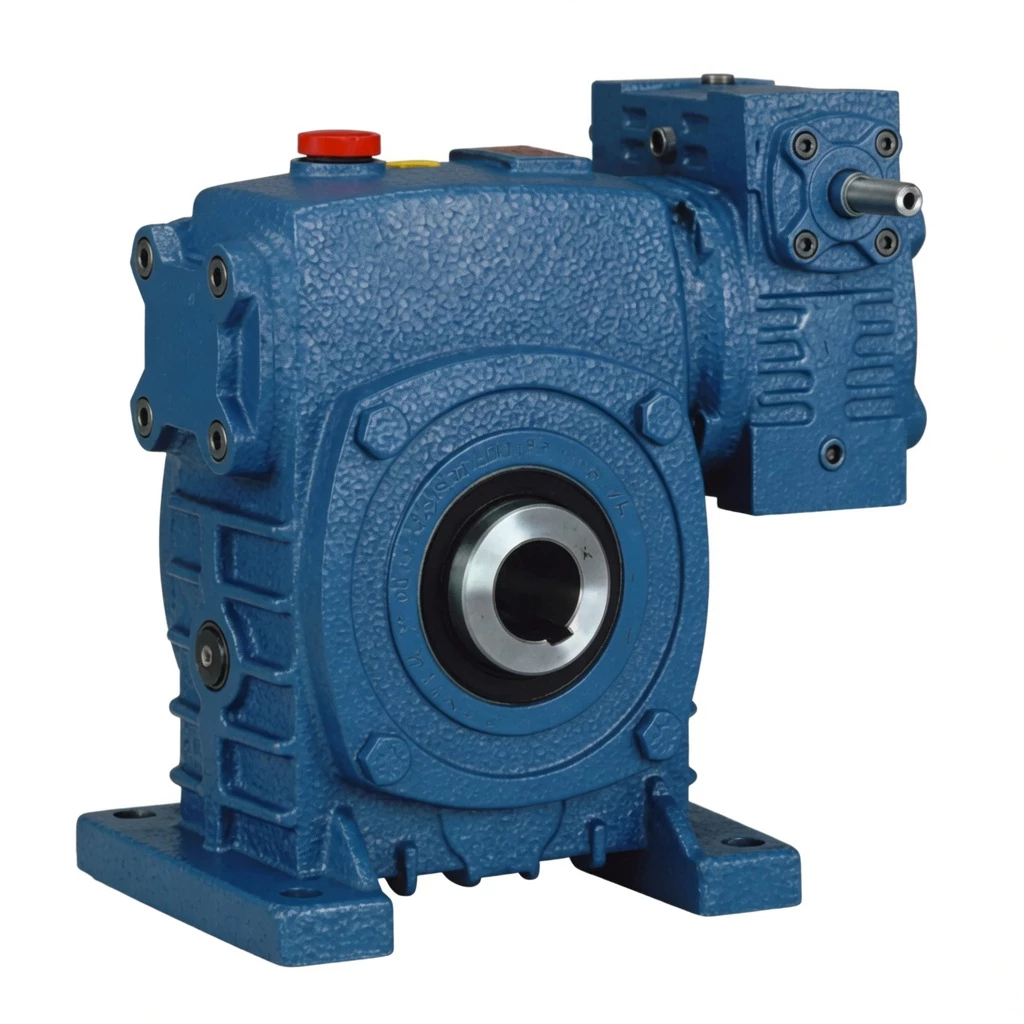

WPEKS Double Speed Cast Iron Worm Gearbox — WP Series

Overhead motor drives that must also connect to the driven shaft via hollow bore — eliminating the coupling on the most mechanically demanding side — while delivering ratios far beyond single-stage capability, represent a triple-specification challenge. The WPEKS Double Speed Cast Iron Worm Gearbox addresses this precisely: S-type input shaft (overhead motor), K-type hollow bore output (direct shaft connection), and double-stage worm reduction (1/200–1/900) in a single cast iron housing. It is the single-unit solution for the overhead-motor + shaft-mount + extreme-ratio combination.

✉ Request a Quote
 | About Ever-power

■ S + K + Double-Stage: Overhead-Motor Shaft-Mount Extreme-Ratio in One Unit

Three specialised specifications combined in one housing: overhead motor geometry (S-input), coupling-free shaft connection (K hollow bore), ultra-high ratio (double-stage worm). Each feature eliminates one component from a conventional multi-part arrangement.

■ K Bore Oriented for Overhead S+K Geometry

The hollow output bore is positioned and sealed for operation in conjunction with the S-type input overhead orientation. Oil seals are specifically selected for the S+K combined geometry.

■ Full Double-Stage Torque Through Hollow Bore

The WPEKS K-type hollow bore is rated for the full double-stage output torque — identical torque ratings to the WPES solid output shaft for the same size combination. No derating for hollow bore.

■ S-Type Input Oil Circuit — Validated for S+K Geometry

Oil distribution channels validated for the unique combination of S-type input geometry and K-type output geometry in the double-stage housing. Ensures proper lubrication of both stages in the combined S+K configuration.

■ Torque Arm Boss for Shaft-Mount Housing Restraint

When installed as a shaft-mount (hollow bore onto driven shaft), the WPEKS housing torque arm boss provides the housing restraint anchor point. S-type input orientation is compatible with torque arm shaft-mount installation.

■ Available in 9 Sizes — Full Double-Stage Range

WPEKS covers the full WPE double-stage size range (40–250 mm combined), providing output torques from 250 Nm (size 40–70 at 1/200) to 6,050 Nm (size 155–250) through the hollow bore.

☵ Overhead Motor Shaft-Mount Extreme-Ratio Agitators

Agitator drives where the motor must be overhead, the agitator shaft must insert through a hollow bore, and the ratio must exceed 1/60 are the exact application profile of the WPEKS.

⚊ Slow Overhead-Driven Shaft-Mount Conveyors

Conveyor head shaft-mount drives with overhead motor positions and very slow belt speeds combine the WPEKS’s S-input, K hollow bore, and double-stage ratio in the most compact possible configuration.

⚒ Extreme-Ratio Fan Shaft Drives — Overhead Motor

Industrial fans with very slow rotation and overhead motor mounting use the WPEKS hollow bore shaft-mount for direct fan shaft engagement at ultra-low speeds.

⚔ Ceiling-Mount Slow Turntable Drives

Ceiling-mounted turntable and indexing table drives requiring very slow rotation (1–5 RPM) with the motor overhead and the turntable shaft passing through the hollow bore use the WPEKS.

⚛ Any S + K + Double-Stage Requirement

Any process equipment specification combining overhead motor (S), hollow bore output (K), and >1/60 ratio is best served by the WPEKS — the only standard catalogue product addressing all three simultaneously.
