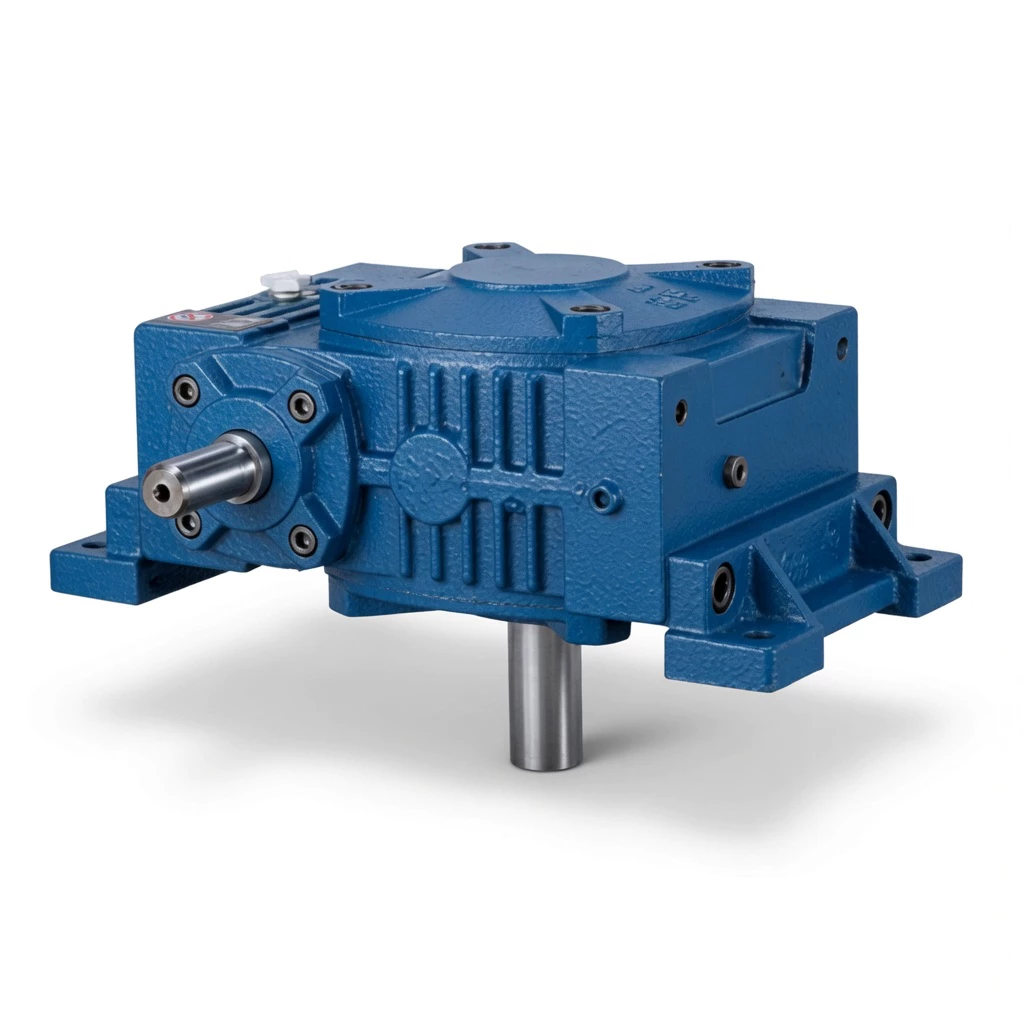

WPWO Universal Speed Cast Iron Worm Gearbox
Vertical agitator drives — vessels requiring a slow upward output shaft for top-entry agitation — in equipment that must also accommodate multiple installation orientations require a gearbox combining vertical upward output with universal housing versatility. The WPWO Universal Speed Cast Iron Worm Gearbox provides the WPW-series universal body with O-type vertical upward output across 5 shaft direction configurations. Slow vertical agitation from ratio 1/5 to 1/60, in any installation orientation, from a single standard cast iron product.
Technical Specifications — WPWO
Key Parameters
| Parameter | Specification |
|---|---|
| Series | Universal Speed (WPW+O) |
| Housing | Solid integral cast iron (P-housing) |
| Input | Solid shaft (bilateral) |
| Output | Vertical upward (O-type) |
| Ratio | 1/5–1/60 |
| Size Range | 40–250 mm |
| Mounting | Foot-mount, vertical upward output |
| Housing Material | FC20+ grey cast iron (GG20) |
| Worm Wheel | Tin-bronze alloy ZCuSn10Pb1 |
| Worm Shaft | 20CrMnTi carburised & hardened, 55–60 HRC |
| Lubrication | N150–N220 (–30°C–40°C); N220–N320 (40°C–65°C) |
| Max Oil Temp | 95°C continuous |
| Weight Range | 6.5–430 kg |
| Key Feature | WPWO: universal W-body + O vertical upward output — slow vertical agitator and turntable drives in universal housing |
Size & Performance Data
| Size (mm) | Ratio | Input Power (kW) | Output Torque (Nm) | A (mm) | AA (mm) | AB (mm) | BB (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 40 | 1/5–1/60 | 0.06–0.78 | 2.2–26.5 | 121 | 53 | 40 | 49 | 6.5 |
| 50 | 1/5–1/60 | 0.10–1.33 | 4.5–54.0 | 133 | 57 | 44 | 55 | 9 |
| 63 | 1/5–1/60 | 0.19–2.25 | 8.5–104 | 155 | 67 | 51 | 65 | 14 |
| 75 | 1/5–1/60 | 0.32–3.75 | 14.5–175 | 175 | 75 | 57 | 73 | 20 |
| 90 | 1/5–1/60 | 0.62–6.98 | 28–316 | 205 | 89 | 67 | 87 | 33 |
| 110 | 1/5–1/60 | 1.18–11.9 | 53–540 | 238 | 103 | 78 | 101 | 54 |
| 130 | 1/5–1/60 | 2.02–19.7 | 91–891 | 266 | 115 | 87 | 112 | 78 |
| 150 | 1/5–1/60 | 3.07–28.8 | 139–1304 | 302 | 131 | 100 | 128 | 113 |
| 175 | 1/5–1/60 | 5.13–45.9 | 232–2074 | 348 | 151 | 115 | 147 | 170 |
| 200 | 1/5–1/60 | 8.02–66.2 | 363–2993 | 392 | 170 | 130 | 165 | 238 |
| 250 | 1/5–1/60 | 14.0–106 | 633–4796 | 479 | 208 | 159 | 202 | 430 |
Universal W-Body Structure
The WPW-series universal housing is manufactured as a single FC20+ grey cast iron casting with bore positions, keyway orientations, and oil channels configured for the selected shaft direction. All 5 shaft direction configurations (A/B/C/D/E) use the same casting geometry with specific machining per configuration.
Hardened 20CrMnTi steel worm shaft with case-hardened tooth flanks (55–60 HRC). The worm shaft and its bearings are selected for the specific input orientation of the model — A-type (below), S-type (overhead), or bilateral — ensuring rated bearing life in the correct load direction.
Tin-bronze ZCuSn10Pb1 alloy worm wheel machined to mesh precisely with the hardened worm shaft. The bronze material provides excellent anti-seizure properties and wear-in characteristics for the worm gear mesh.
Output shaft in quenched-and-tempered steel with double-lip oil seals rated for the specific output orientation (horizontal, vertical upward O-type, vertical downward X-type, side T-type, or extended V-type). Seal selection matches the hydrostatic pressure requirements of the installed orientation.
Single-stage oil bath lubrication. Oil fill port, oil gauge, vent plug, and drain plug are positioned for the selected shaft direction configuration. Fill quantities are specified per configuration in the installation guide — do not use generic fill values across configurations.
FC20+ cast iron foot-mount base integrated with the housing casting. Four mounting holes for B3 foot mounting. The base orientation is fixed for the selected shaft direction configuration. For shaft-mount (hollow bore) applications, the torque arm boss provides housing restraint.
Core Features & Benefits
■ Universal W-Body + O Vertical Upward Output: Vertical Drive in Any Orientation
The WPWO provides the O-type vertical upward output shaft in all 5 WPW shaft direction configurations — the same vertical output direction is maintained regardless of which input orientation is selected.
■ O-Type Output Bearings Rated for Vertical Axial Load
Output shaft bearings are rated for full vertical upward axial loads — agitator and equipment hanging weight plus dynamic agitation reaction forces — across the full WP torque range.
■ O-Type Vertical Output Oil Seals — Double-Lip Premium
Vertical upward output shaft oil seals are double-lip premium seals rated for hydrostatic pressure in vertical orientation, identical specification to the single-orientation WPO.
■ Universal Body Oil System — O-Type Mode
WPW universal body oil channels accommodate the vertical output orientation. Orientation-specific fill quantities for O-type mode are specified in the WPWO installation guide.
■ 5 Input Shaft Direction Options for Vertical Output
Five shaft direction configurations provide diverse input shaft positions even with the fixed vertical upward output direction — allowing motor/input to be positioned for the most practical installation.
■ Output Torques to 4,796 Nm in Vertical Configuration
The O-type vertical upward output does not derate the WPWO torque rating. Full WP output torques are maintained through the vertical output shaft.
Industry Applications — WPWO
☵ Universal Platform Vessel Agitators
Process equipment product lines with vertical agitator drives across multiple vessel orientations use the WPWO universal W-body to standardise their slow vertical drive specification across the complete product range.
⚔ Multi-Vessel Chemical & Food Processing
Chemical and food plants with multiple vessel types requiring slow vertical agitation at different installation angles use the WPWO for standardised maintenance and spare parts across all vessel drives.
⚒ Wastewater Treatment — Multiple Tank Configurations
Wastewater treatment plants with diverse tank configurations and orientations standardise their slow agitator drives on the WPWO universal platform for simplified procurement and service.
⚊ OEM Agitated Vessel Equipment — Universal Platform
OEM manufacturers building agitated vessel equipment in multiple sizes and configurations use the WPWO to eliminate orientation-specific gearbox variants from their component range.
⚛ General Vertical Output Drives — Universal Housing
Any application requiring a vertical upward output shaft across multiple installation orientations benefits from the WPWO’s universal body combined with O-type output.
Why Choose WPWO — Competitive Comparison
| Feature | Ever-power WPWO | Alternatives |
|---|---|---|
| Vertical Output | ✓ O-type upward — built-in | Horizontal — right-angle adaptor needed |
| Universal Housing | ✓ 5-direction W-body — all positions | Single orientation per WPO model |
| Spare Parts | ✓ One SKU for all orientations + vertical output | Multiple models for multiple orientations |
| Input Flexibility | ✓ 5 input shaft positions available | Fixed input-output relationship |
| OEM Versatility | ✓ One product for all vessel orientations | Different model per orientation |
| Output Torque | ✓ Full WP range in vertical | Same — single orientation |
