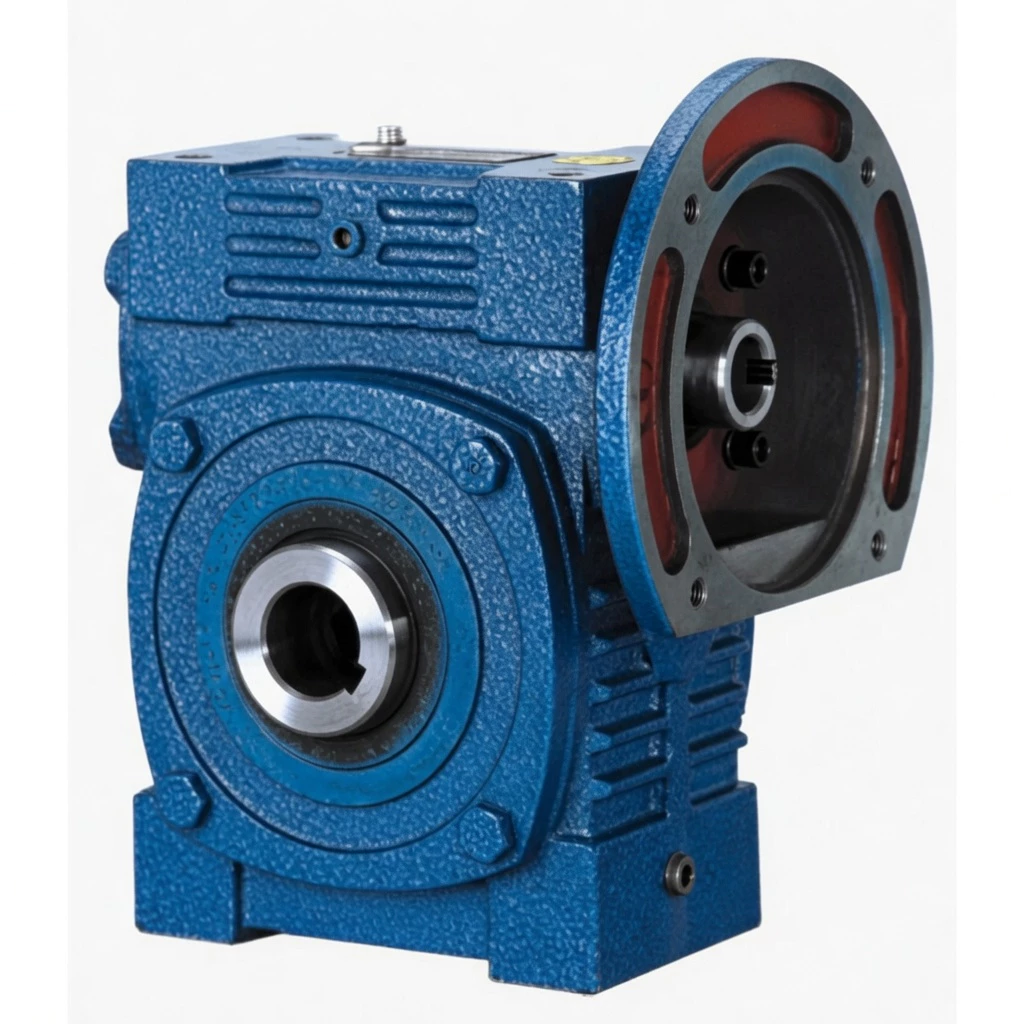

WPWDK Universal Speed Cast Iron Worm Gearbox
The combination of direct IEC motor connection and hollow bore shaft-mount output — zero couplings on both sides — in a gearbox that also supports all installation orientations is the most flexible motorised shaft-mount drive specification available. The WPWDK Universal Speed Cast Iron Worm Gearbox delivers exactly this: WPW-series universal body (5 shaft direction configurations), D-type IEC motor flange (direct motor, no input coupling), and K-type hollow bore output (direct shaft mount, no output coupling). For OEM machine builders and plant engineers who need a motorised shaft-mount drive that works in any orientation, the WPWDK is the definitive single-product solution.
Technical Specifications — WPWDK
Key Parameters
| Parameter | Specification |
|---|---|
| Series | Universal Speed (WPWD+K) |
| Housing | D-type split cast iron, 5 shaft directions |
| Input | IEC motor flange (D-type) |
| Output | Hollow bore (K-type) |
| Ratio | 1/5–1/60 |
| Size Range | 40–250 mm |
| Mounting | Foot-mount, D-split, IEC flange, hollow output |
| Housing Material | FC20+ grey cast iron (GG20) |
| Worm Wheel | Tin-bronze alloy ZCuSn10Pb1 |
| Worm Shaft | 20CrMnTi carburised & hardened, 55–60 HRC |
| Lubrication | N150–N220 (–30°C–40°C); N220–N320 (40°C–65°C) |
| Max Oil Temp | 95°C continuous |
| Weight Range | 7–481 kg |
| Key Feature | WPWDK: universal body + D-IEC flange + K hollow bore — motorised shaft-mount in any orientation, zero couplings both sides |

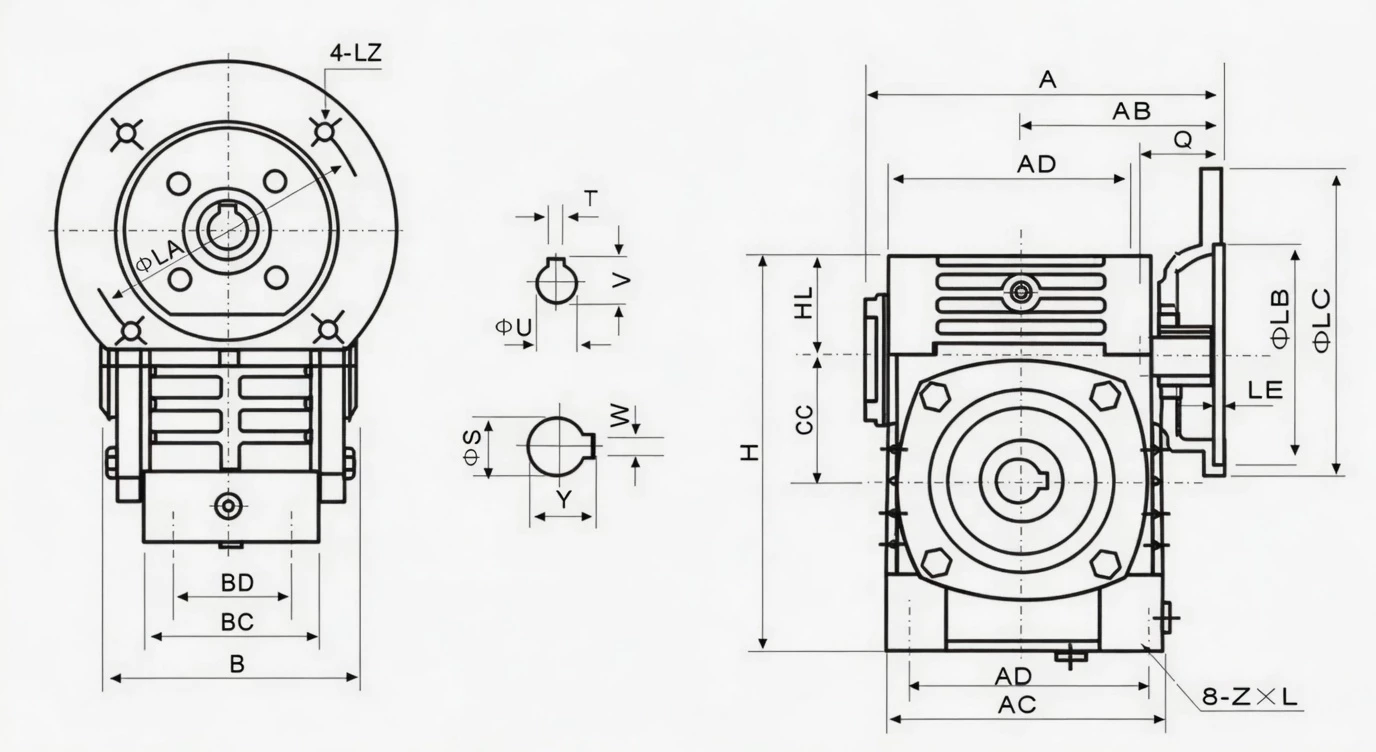

Size & Performance Data
| Size (mm) | Ratio | Input Power (kW) | Output Torque (Nm) | A (mm) | AA (mm) | AB (mm) | BB (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| 40 | 1/5–1/60 | 0.06–0.78 | 2.2–26.5 | 133 | 53 | 40 | 62 | 7 |
| 50 | 1/5–1/60 | 0.10–1.33 | 4.5–54.0 | 148 | 57 | 44 | 70 | 10 |
| 63 | 1/5–1/60 | 0.19–2.25 | 8.5–104 | 171 | 67 | 51 | 82 | 16 |
| 75 | 1/5–1/60 | 0.32–3.75 | 14.5–175 | 191 | 75 | 57 | 91 | 23 |
| 90 | 1/5–1/60 | 0.62–6.98 | 28–316 | 224 | 89 | 67 | 107 | 38 |
| 110 | 1/5–1/60 | 1.18–11.9 | 53–540 | 260 | 103 | 78 | 123 | 62 |
| 130 | 1/5–1/60 | 2.02–19.7 | 91–891 | 290 | 115 | 87 | 136 | 89 |
| 150 | 1/5–1/60 | 3.07–28.8 | 139–1304 | 329 | 131 | 100 | 155 | 128 |
| 175 | 1/5–1/60 | 5.13–45.9 | 232–2074 | 377 | 151 | 115 | 177 | 191 |
| 200 | 1/5–1/60 | 8.02–66.2 | 363–2993 | 424 | 170 | 130 | 199 | 267 |
| 250 | 1/5–1/60 | 14.0–106 | 633–4796 | 517 | 208 | 159 | 243 | 481 |
Universal W-Body Structure
The WPW-series universal housing is manufactured as a single FC20+ grey cast iron casting with bore positions, keyway orientations, and oil channels configured for the selected shaft direction. All 5 shaft direction configurations (A/B/C/D/E) use the same casting geometry with specific machining per configuration.
Hardened 20CrMnTi steel worm shaft with case-hardened tooth flanks (55–60 HRC). The worm shaft and its bearings are selected for the specific input orientation of the model — A-type (below), S-type (overhead), or bilateral — ensuring rated bearing life in the correct load direction.
Tin-bronze ZCuSn10Pb1 alloy worm wheel machined to mesh precisely with the hardened worm shaft. The bronze material provides excellent anti-seizure properties and wear-in characteristics for the worm gear mesh.
Output shaft in quenched-and-tempered steel with double-lip oil seals rated for the specific output orientation (horizontal, vertical upward O-type, vertical downward X-type, side T-type, or extended V-type). Seal selection matches the hydrostatic pressure requirements of the installed orientation.
Single-stage oil bath lubrication. Oil fill port, oil gauge, vent plug, and drain plug are positioned for the selected shaft direction configuration. Fill quantities are specified per configuration in the installation guide — do not use generic fill values across configurations.
FC20+ cast iron foot-mount base integrated with the housing casting. Four mounting holes for B3 foot mounting. The base orientation is fixed for the selected shaft direction configuration. For shaft-mount (hollow bore) applications, the torque arm boss provides housing restraint.
Core Features & Benefits
■ D-IEC Flange + K Hollow Bore + Universal Body: Zero Couplings, All Orientations
WPWDK integrates three features: D-IEC motor flange (no input coupling), K hollow bore output (no output coupling), and WPW universal body (5 shaft directions). The complete zero-coupling motorised shaft-mount drive in any orientation.
■ D-Split Housing: In-Situ Service with Motor and Shaft Connected
D-split housing cover removes without disturbing the IEC motor or the hollow bore driven shaft — in all 5 shaft direction configurations. Universal in-situ serviceability for the zero-coupling drive system.
■ IEC Motor Frame Range: M8 to M16
Full range from M8 fractional (0.06 kW, size 40) to M16 heavy industrial (14+ kW, size 250). All IEC motor sizes for standard industrial conveyor and process drives are covered.
■ K Hollow Bore Rated for Full WP Torque Range
WPWDK hollow bore output is rated for full WP series output torques — up to 4,796 Nm at size 250. No torque derating for the combined IEC flange + hollow bore + universal body configuration.
■ 5 Shaft Direction Configurations — Full Universal Support
All 5 configurations (A–E) are available with the complete D+K feature set. Universal orientation coverage is maintained even with both IEC flange and hollow bore.
■ CE + ISO 9001:2000 for Full Feature Set
Every WPWDK is manufactured under ISO 9001:2000 with CE marking covering the D+K+universal configuration in all 5 shaft direction configurations.
Industry Applications — WPWDK
⚙ Universal OEM Motorised Shaft-Mount Drives
OEM builders needing one motorised hollow bore product for all machine configurations specify the WPWDK — universal body handles all orientations, IEC flange eliminates input coupling, hollow bore eliminates output coupling.
⚒ Process Industry — Universal Zero-Coupling Drive
Process plant procurement specifying IEC direct motor, hollow bore output, and universal orientation support from one catalogue item find the WPWDK satisfies the complete specification.
⚔ Food & Pharmaceutical — Hygienic Drive Design
Food and pharmaceutical facilities requiring minimal coupling hardware (for hygiene and HACCP compliance) and diverse installation orientations specify the WPWDK for zero-coupling-both-sides drive design.
⚊ Conveyor Fleet — Motorised Shaft-Mount Standard
Conveyor fleet operators standardising on motorised shaft-mount drives across diverse conveyor orientations use the WPWDK as their universal motorised hollow bore specification.
☷ Maintenance Simplification — Maximum BOM Reduction
Industrial maintenance managers maximising BOM simplification specify the WPWDK as their single motorised shaft-mount drive model — one SKU covers all orientations, IEC flange and hollow bore included.
Why Choose WPWDK — Competitive Comparison
| Feature | Ever-power WPWDK | Alternatives |
|---|---|---|
| Input Coupling | ✓ D-IEC flange — none required | Coupling + adaptor plate required |
| Output Coupling | ✓ K hollow bore — none required | Coupling + shaft key required |
| Orientation | ✓ Universal — 5 configurations | Orientation-specific per model |
| Total Couplings | ✓ Zero — both sides | Minimum 1 coupling per installation |
| BOM Simplification | ✓ 1 SKU for all orientations + features | 3+ SKUs for equivalent coverage |
| Ratio Range | ✓ 1/5–1/60 all orientations | Same — single orientation |
Quality Control & Certifications
✎ ISO 9001:2000 Certified
Every WPWDK is manufactured, assembled, and tested under ISO 9001:2000 quality management. Our factory was among the first in this product category to achieve this certification.
✎ CE Marking
Full CE marking confirms compliance with EU Machinery Directive 2006/42/EC — covering safety, design standards, and manufacturing quality for all WPW-series universal configurations.
✎ Pre-Shipment Testing
Noise test (below 72 dB(A) at rated load), oil leak test (30-minute pressurisation), torque transmission test (output torque within ±5% of rated). Failed units are reworked — not shipped.
✎ Universal Configuration Quality
Each shaft direction configuration (A–E) is verified dimensionally for correct bore position, keyway orientation, and oil channel routing before leaving our production line.
Why Choose Ever-power for WPWDK
We have been manufacturing WPW-series universal cast iron worm gearboxes for over two decades. Our 5-shaft-direction production process — with orientation-specific quality checks — is a core competency of our manufacturing facility.
Our CNC machining centres maintain the bore position accuracy and keyway orientation tolerances required for consistent inter-part fit across all 5 shaft direction configurations of the WPW universal body.
We export the WPW series to Australia, Europe, Southeast Asia, the Middle East, and North America. Our export documentation, CE certification, and packing standards are optimised for international procurement.
Full OEM services: custom nameplating, paint colours, shaft dimensions, flange configurations, and documentation packages. Custom shaft direction combinations and output configurations available for OEM volumes.
Our application engineers provide WPW gearbox selection, load calculation, shaft direction selection, oil specification, and installation support. Email [email protected] with your application data.
The complete WPW universal series covers solid shaft, hollow bore, IEC flange, and extended shaft variants in all output directions — horizontal, vertical up, vertical down, side, and extended. One universal platform for all drive applications.
Customer Reviews & Case Studies
“WPWDK is the single drive unit for our entire process equipment range. Universal body, IEC direct motor, hollow bore shaft, all in one. Our BOM went from 12 drive variants to 1. All four features work seamlessly together. Exceptional product for demanding OEM applications.”
Australia 🇦🇺
“WPWDK specified for our process equipment range. Zero-coupling-both-sides was a specific hygienic design requirement. Universal body handles our diverse machine orientations. D-split housing for in-situ maintenance without machine teardown. Outstanding engineering product.”
Germany 🇩🇪
“WPWDK for our OEM machine platform. The 3-feature combination (universal body, IEC flange, hollow bore) was not available from any other standard catalogue product. Universal body allows one design drawing for all machine orientations. Quality excellent and consistent across orders.”
South Korea 🇰🇷
“WPWDK is our plant standard for all motorised hollow shaft drives. Three features in one unit simplified procurement significantly. IEC flange + hollow bore + universal orientation from catalogue — practical engineering product that saves considerable project time.”
Mexico 🇲🇽
